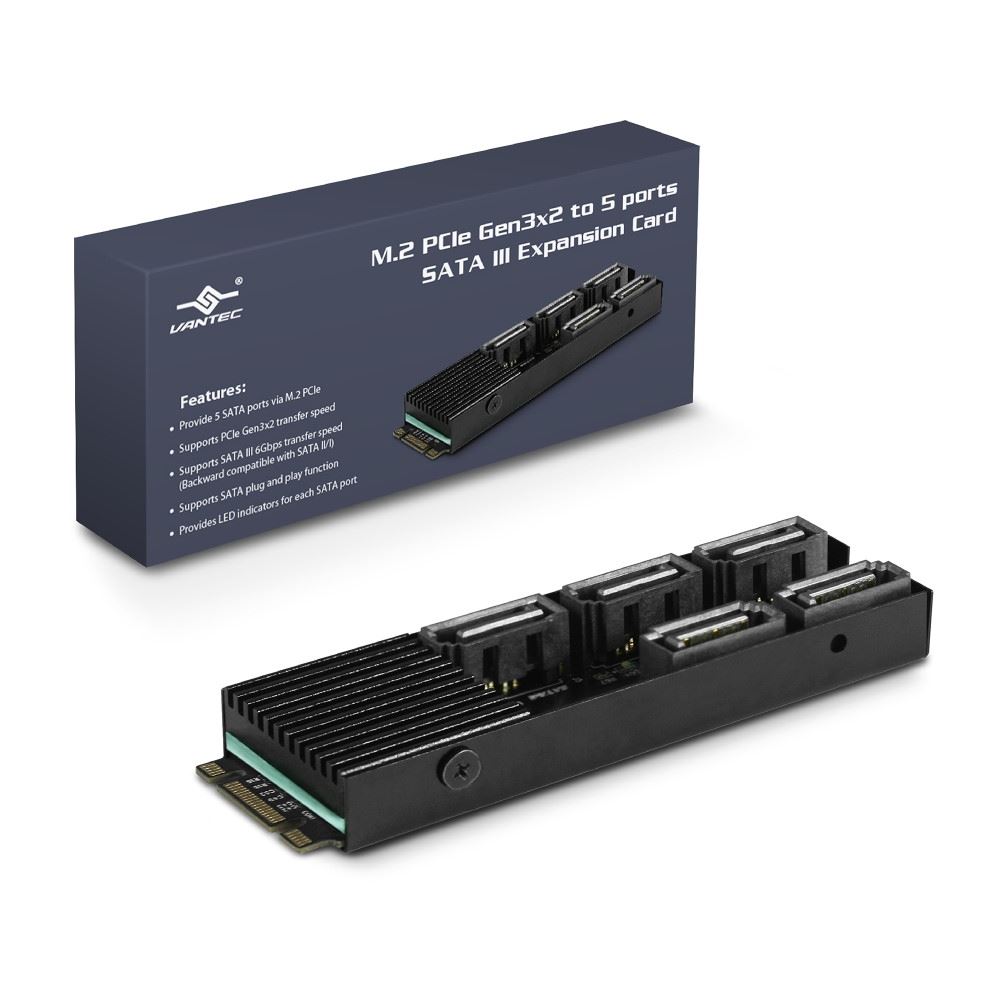

Vantec M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card
R635
This M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card is designed to use the M.2 NVMe slot on the motherboard to connect 5 SATA devices. It uses PCIe v3.0 with 2 lanes (B+M Key) to link to the 5 SATA devices. This will allow for even greater number of SATA III devices to be connected. It is Plug and Play, no additional software or drivers are required when using Windows 10/11.
In stock
Description
FEATURES
Provide 5 SATA ports via M.2 PCIe
Supports PCIe Gen3x2 transfer speed
Supports SATA III 6Gbps transfer speed (Backward compatible with SATA II/I)
Supports SATA plug and play function

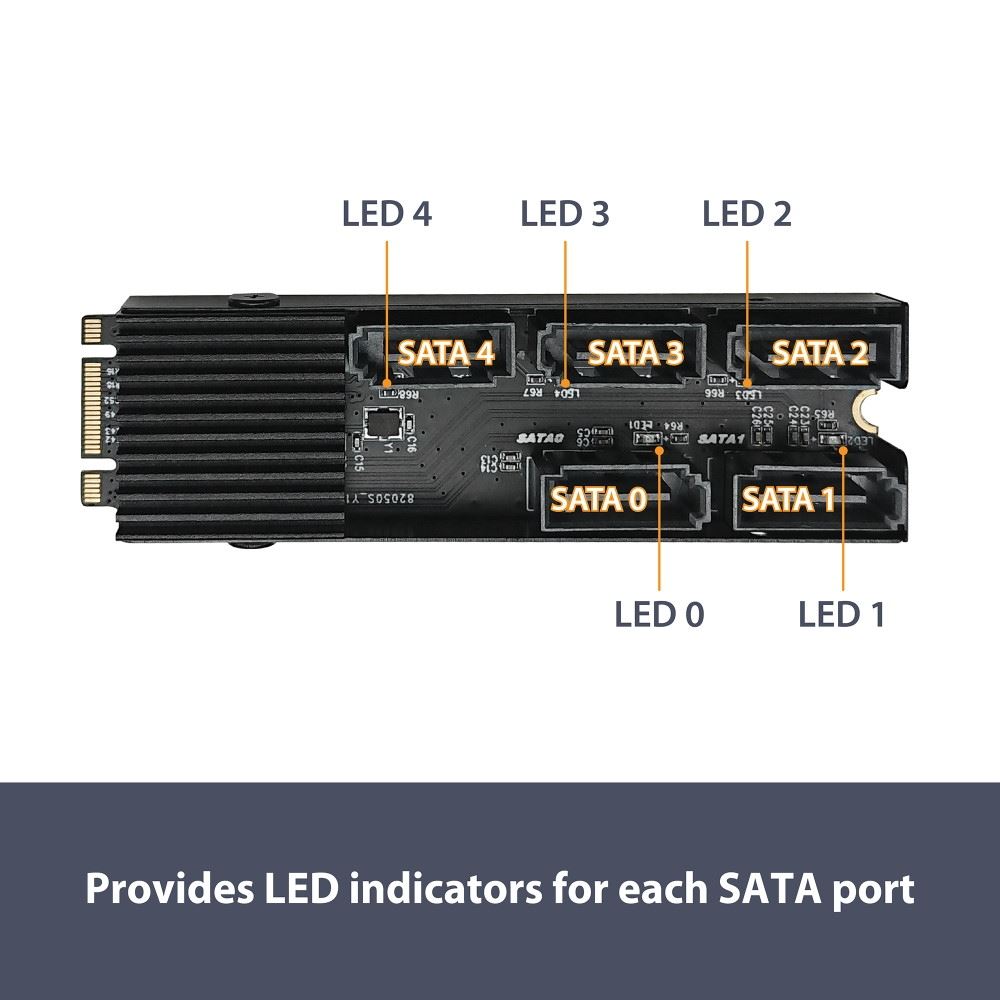

Provides LED indicators for each SATA port
TECHNICAL SPECIFICATIONS
M.2 interface: M.2 NVMe (PCI Express 3.0×2)
Device Connectors: Five SATA III (6Gbps) ports
Power Supply: M.2 interface powered, no external power needed

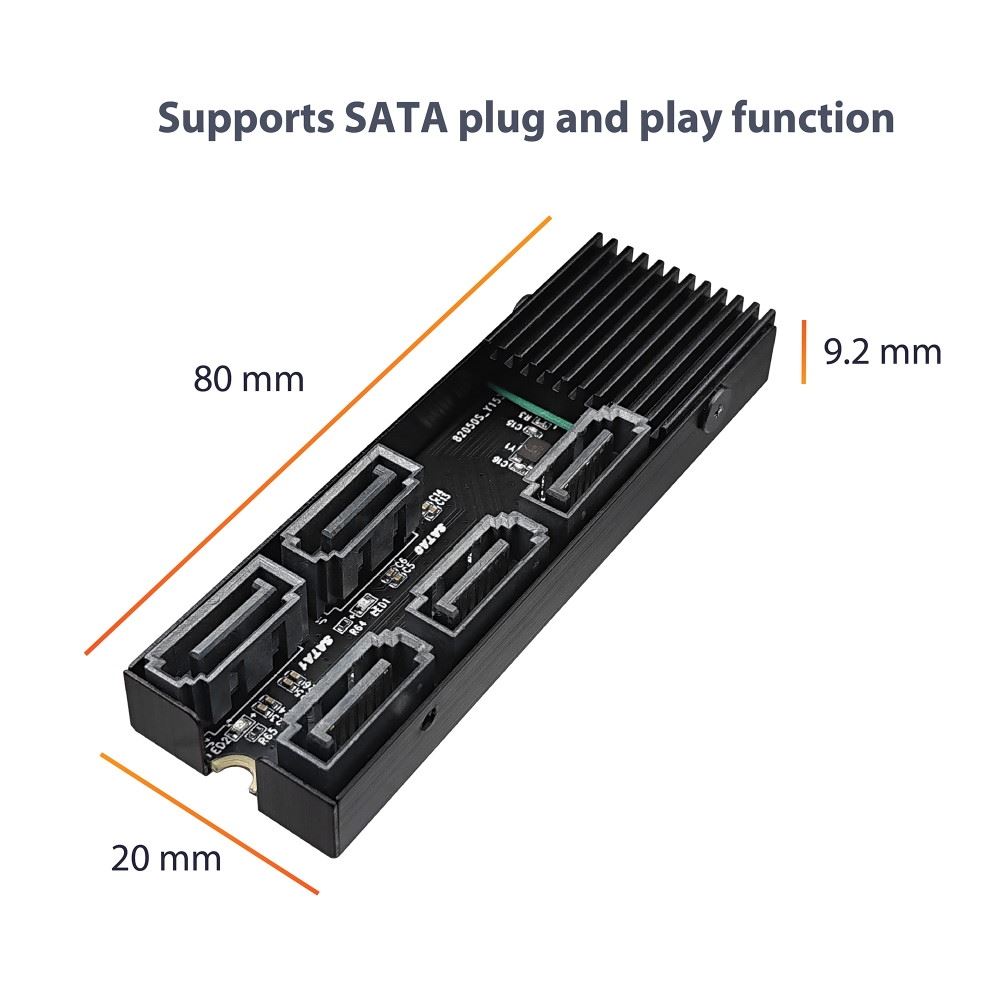

Item Dimensions (LxWxH): 80.8 x 25.4 x 10.6 mm
Item Weight: 23 g
OS Support: Windows 11, 10 (32bit or 64bit); Linux OS with Latest Kernel
Operating Temperature: 0 ℃ to +45℃
Operating Humidity: 10% to 85 % RH (no condensation)
System Requirements
M.2 NVMe interface on motherboard
Newer OS (Windows 11/10)
Preferred, but not required, motherboard with newer core chipset
NOTE: Will work on motherboard with M.2 NVME, will not work with M.2 SATA
What’s Included
M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card
Quick Install Guide
Additional information
| Weight | 0,1 kg |
|---|---|
| Dimensions | 13,8 × 6 × 2,4 cm |
| Condition |
