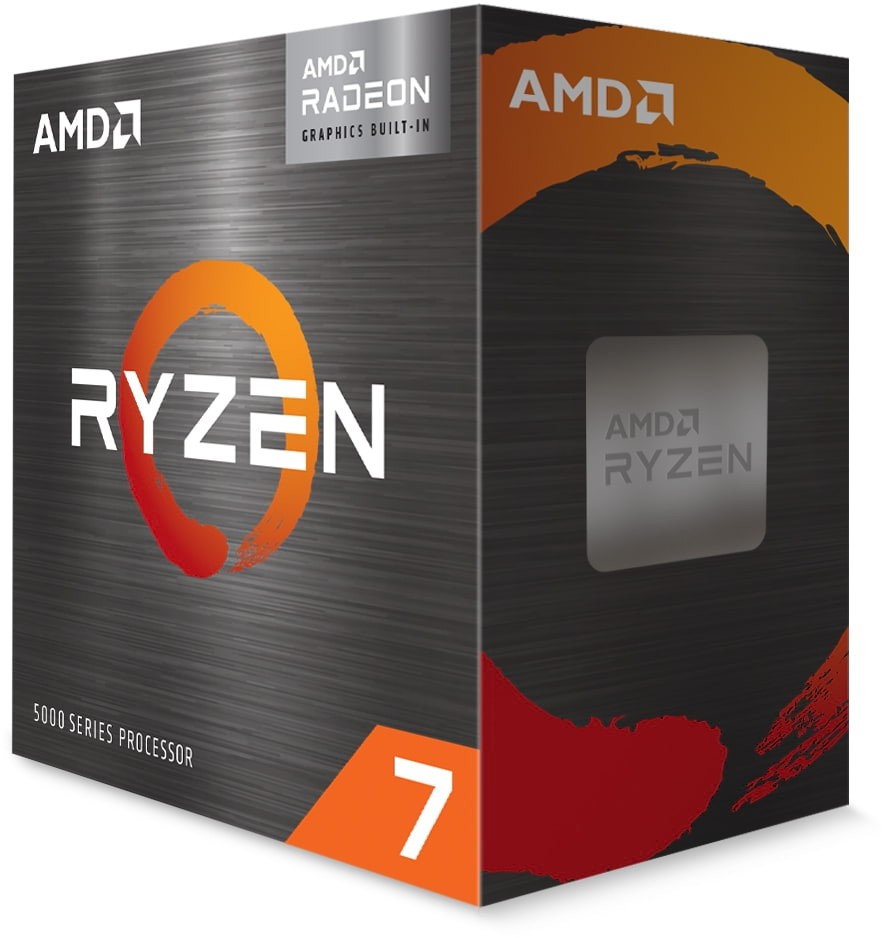

AMD Ryzen 7 5700G 8-Core 3.8GHz (4.6GHz Boost) Socket AM4 Desktop APU
R4255
AMD Ryzen 7 5700G. Processor family: AMD Ryzen 7, Processor socket: Socket AM4, Component for: PC. Memory channels: Dual-channel, Memory types supported by processor: DDR4-SDRAM, Memory clock speeds supported by processor: 3200 MHz. On-board graphics adapter model: AMD Radeon Graphics, On-board graphics adapter base frequency: 2000 MHz. Market segment: Desktop
In stock
Description
FEATURES
3.8GHz Base Clock
4.6GHz Boost Clock
8 Cores, 16 Threads
AMD 7nm Zen 3 Architecture
Supports DDR4-3200MHz
20MB Total Cache

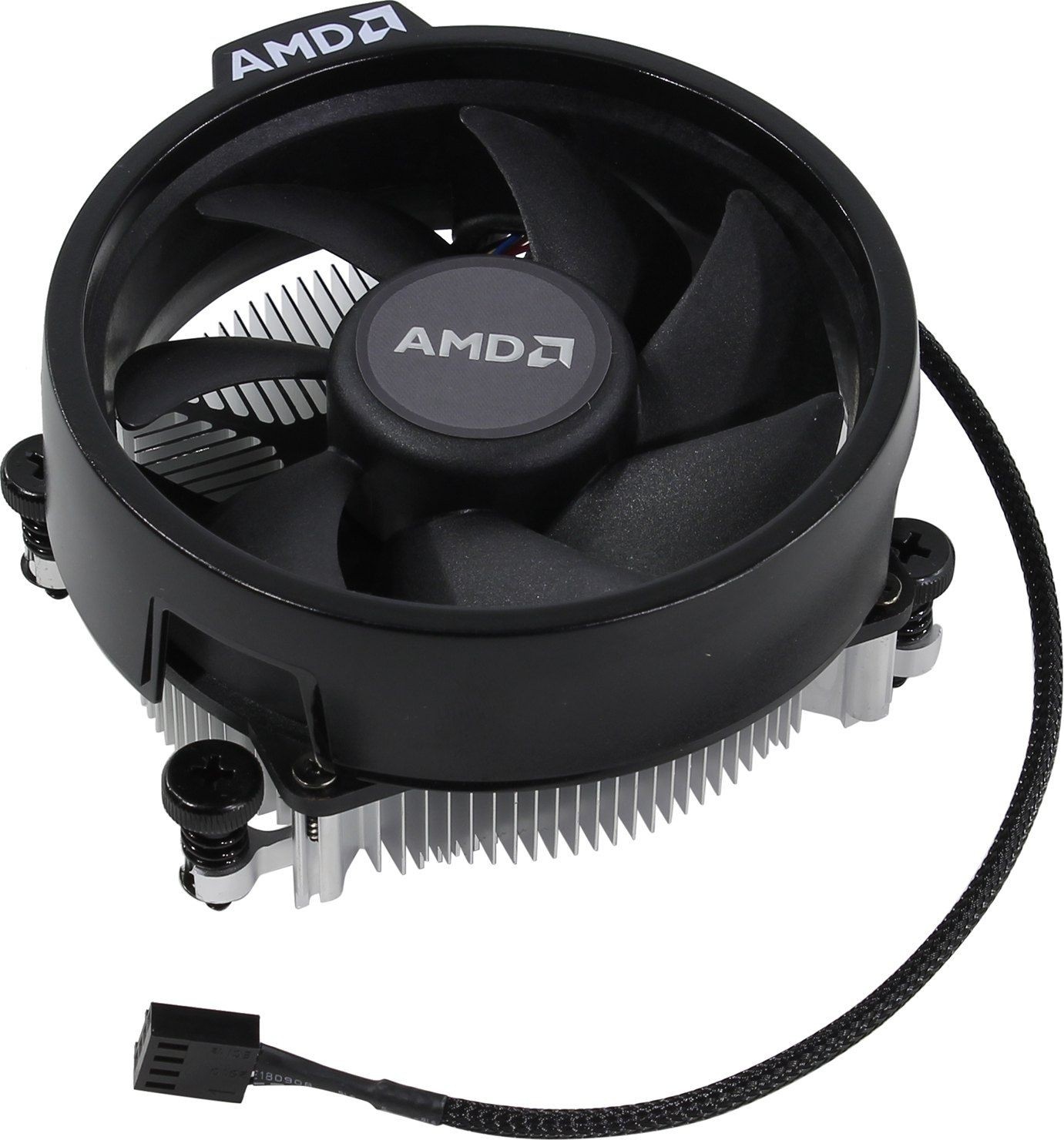

Includes AMD Wraith Stealth Cooler
Integrated AMD Radeon RX Vega 8 Graphics
65W TDP
TECHNICAL SPECIFICATIONS
Brand: AMD
Series: Ryzen 7 5000 G-Series Desktop Processors with Radeon Graphics
Model: AMD Ryzen 7 5700G (100-100000263BOX)
Number of CPU Cores: 8
Number of Threads: 16
Number of GPU Cores: 8
Base Clock: 3.8GHz
Maximum Boost Clock: Up to 4.6GHz
Total L2 Cache: 4MB
Total L3 Cache: 16MB
Unlocked: Yes
CMOS: TSMC 7nm FinFET
Package: AM4
PCI Express Version: PCIe 3.0
Thermal Solution (PIB): Wraith Stealth
Default TDP / TDP: 65W
cTDP: 45-65W
Max Temps: 95°C
System Memory
System Memory Specification: Up to 3200MHz
System Memory Type: DDR4
Memory Channels: 2
Graphics Specifications
Graphics Frequency: 2000 MHz
Graphics Model: Radeon Graphics
Graphics Core Count: 8
Key Features
Display Port: Yes
HDMI: Yes
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
| Condition | |
| CPU Manufacturer | AMD |
| CPU Socket | AM4 |
| CPU Series | AMD Ryzen 7 |
Frequently Asked Questions
Q: What processor line does this model belong to?
A: This is an AMD AMD Ryzen 7 processor, designed for gaming, multitasking, and heavy workloads.
Q: What socket motherboard do I need for this CPU?
A: This processor requires a motherboard with a matching AM4 socket layout.
