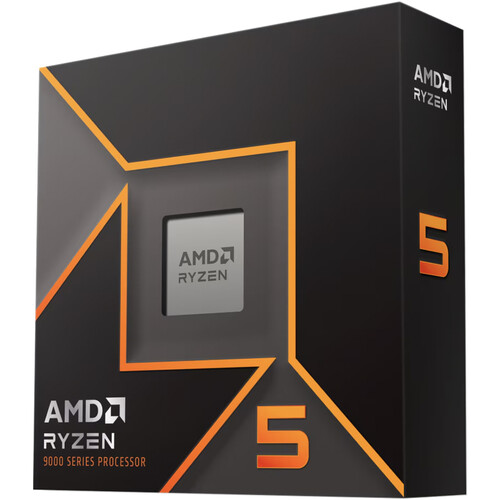

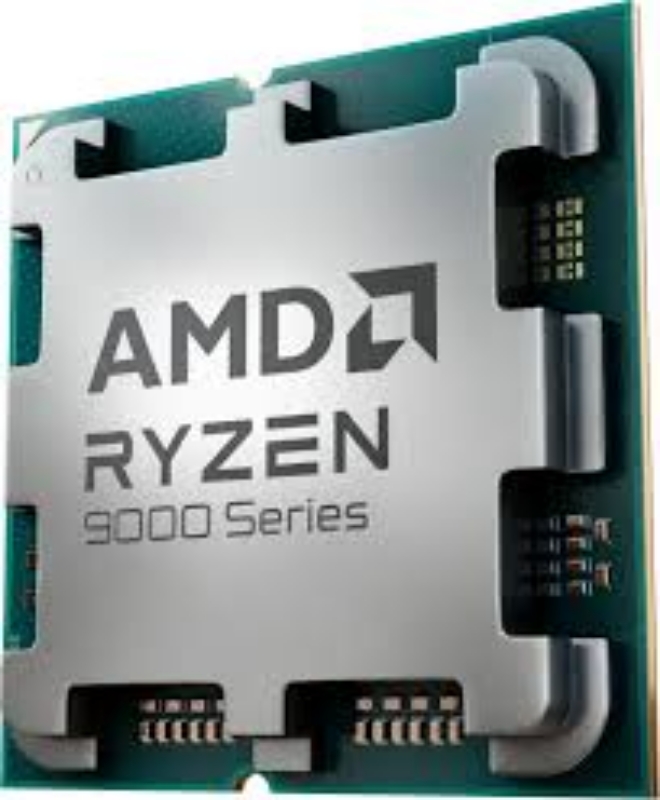

AMD Ryzen 5 9600X 5.40GHz 6-Core Zen 5 Socket AM5 Desktop CPU – Cooler Not Included

Description

FEATURES
AMD Ryzen 5 9600X 5.40GHz Processor (32MB L3 Cache)
Up to 5.40GHz Boost Clock
6 Cores, 12 Threads
AMD 4nm Zen 5 Architecture
TSMC 6nm IO Die
480 KB L1 Cache
6MB L2 Cache
Integrated Radeon RDNA 2 Graphics
Supports AMD X870E, X870, X670E, X670, B650E, B650 Chipsets
Dual-Channel DDR5 Memory Up to 192GB
Up to DDR5-5600MHz Supported
PCI Express Version 5.0 Supported
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0 & Precision Boost Overdrive
AMD StoreMI Technology
Enhanced AI Performance
65W TDP
Socket AM5 Compatible

TECHNICAL SPECIFICATIONS

Brand: AMD
Series: Ryzen 5 (Granite Ridge)
Model: 100-100000597WOF
Family: Ryzen
Series: Ryzen 9000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Architecture: Zen 5
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 5.4 GHz
Base Clock: 3.9 GHz
L1 Cache: 480 KB
L2 Cache: 6 MB
L3 Cache: 32 MB
Default TDP: 65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
Package Die Count: 2
Unlocked for Overclocking: Yes
AMD EXPO Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 95°C
*OS Support: Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity: Native USB 3.2 Gen 2 (10Gbps) Ports: 4, Native USB 2.0 (480Mbps) Ports: 1
PCI Express Version: PCIe 5.0
Native PCIe Lanes (Total/Usable): 28, 24
Additional Usable PCIe Lanes from Motherboard: X870E: 8x Gen4, X870: 4x Gen4, X670E: 12x Gen4, X670: 12x Gen4, B650E: 8x Gen4, B650: 8x Gen4
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 192 GB
System Memory Subtype: UDIMM
Max Memory Speed: 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
ECC Support: Yes (Requires mobo support)
Graphics Capabilities: Graphics Model: AMD Radeon Graphics, Graphics Core Count: 2, Graphics Frequency: 2200 MHz
USB Type-C DisplayPort Alternate Mode: Yes
