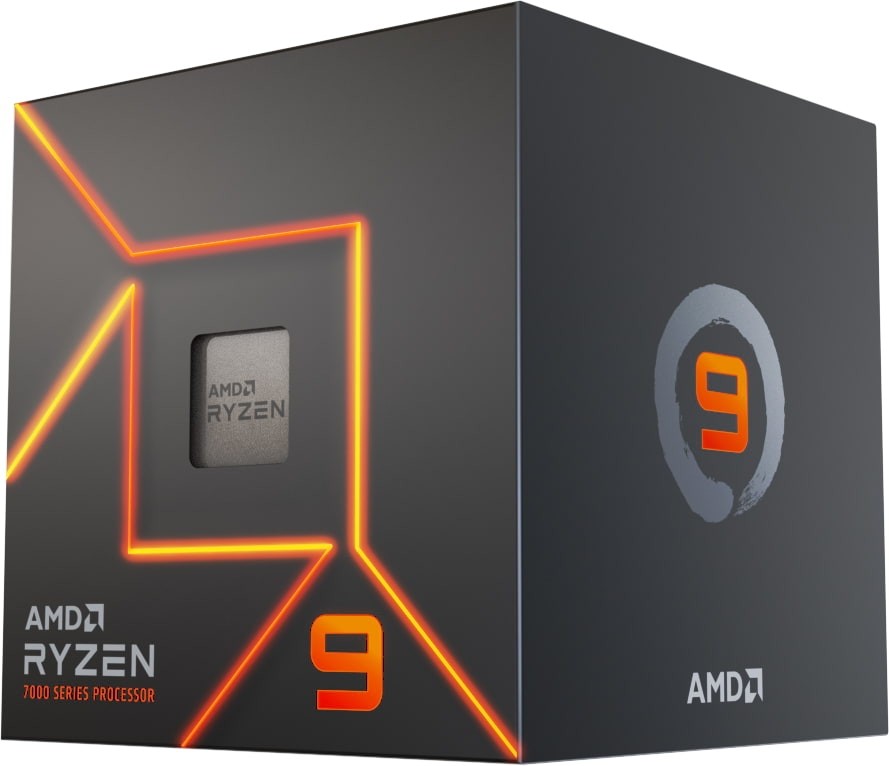

AMD Ryzen 9 7900 5.40GHz 12-Core Zen 4 Socket AM5 Desktop CPU
R9325
Take your computing to the next level with the Ryzen 9 7900 3.7 GHz 12-Core AM5 Processor, which features 12 cores and 24 threads to help quickly load and multitask demanding applications. Designed for socket AM5 motherboards using the powerful Zen 4 architecture with the 5nm process, this high-performance Ryzen processor delivers significantly improved speeds compared to its predecessor while maintaining high energy efficiency. With a base clock speed of 3.7 GHz and a max boost clock speed of 5.4 GHz in addition to 64MB of L3 cache, the Ryzen 9 7900 is built to deliver the power needed to smoothly handle tasks ranging from content creation to immersive gaming. You can boost performance further by overclocking this unlocked processor.
In stock
Description
FEATURES
AMD Ryzen 9 7900 3.70GHz Processor (64MB L3 Cache)
Up to 5.60GHz Boost Clock
12 Cores, 24 Threads
AMD 5nm Zen 4 Architecture
TSMC 6nm IO Die
768KB L1 Cache
12MB L2 Cache
Integrated Radeon RDNA 2 Graphics
Supports AMD X670E, X670, B650E, B650 Chipsets
Dual-Channel DDR5 Memory Architecture Up to 128GB
Up to DDR5-5200MHz Supported
PCI Express Version 5.0 Supported
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0 & Precision Boost Overdrive
AMD StoreMI Technology
170W TDP
Socket AM5 Compatible

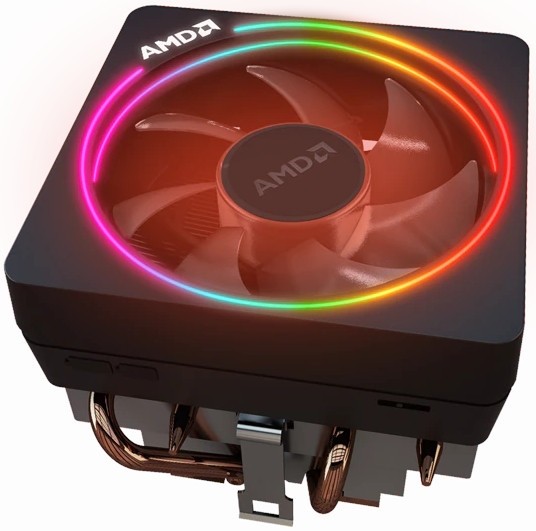

Includes AMD Wraith Prism ARGB Cooler
TECHNICAL SPECIFICATIONS
Brand: AMD
Series: Ryzen 9 (5th Gen, Zen 4)
Model: 7900 (100-100000590BOX)
CPU
Core Arrangement: 12 Zen 4 cores
Number of CPU Cores: 12
Number of Threads: 24
Base Clock: 3.70GHz
Maximum Boost Clock: Up to 5.40GHz
Total L1 Cache: 768KB
Total L2 Cache: 12MB
Total L3 Cache: 64MB
Default TDP: 65W
Lithography Process: Zen 4 Cores – TSMC 5nm FinFET
Zen 4 IO Die – TSMC 6nm FinFET
Memory
System Memory Type: DDR5
Maximum Memory: 128GB
Memory Channels: 2, Dual-channel DDR5 memory architecture
System Memory Specification: 5200MHz supported
Overclocking Support: Yes, Up to 6400MHz with AMD EXPO memory profiles
Supported Memory Speeds: 1x1R 5200 MT/s
1x2R 5200 MT/s
2x1R 3600 MT/s
2x2R 3600 MT/s
ECC Support: Yes (check with your motherboard vendor for support)
Graphics
Integrated: AMD RDNA 2 Graphics
Execution Units: 2 EU, 128 Shaders
Base Clock: 400MHz
Boost Clock: 2200MHz
Supported Video Outputs DisplayPort
HDMI
USB Type-C DisplayPort Alternate Mode
Platform
Unlocked Multiplier: Yes
CPU Socket: AM5
Socket Count: 1P
Thermal Solution: N/A
Maximum Operating Temperature (Tjmax): 95°C
Connectivity
USB Type-C Support: Yes
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 2.0 (480Mbps) Ports: 1
Native CPU PCIe Lanes: 28 lanes total
16x PCIe lanes for graphics
4x PCIe lanes for NVMe storage
4x PCIe lanes for AMD 600 series chipset
Additional Motherboard Chipset PCIe Lanes: AMD X670E: 12x PCIe 4.0 lanes
AMD X670: 12x PCIe 4.0 lanes
AMD B650E: 8x PCIe 4.0 lanes
AMD B650: 8x PCIe 4.0 lanes
NVMe Support: Boot, RAID0, RAID1, RAID10
Operating System Support: Windows 11 64-bit Edition
Windows 10 64-bit Edition
RHEL x86 64-bit
Ubuntu x86 64-bit
*Operating System (OS) support will vary by manufacturer.
General
Advanced Features: AMD StoreMI Technology
AMD Ryzen VR-Ready Premium
PCI Express Gen 5 support
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0
AMD Precision Boost Overdrive
AMD StoreMI Technology
Curve Optimizer Voltage Offsets
AMD Ryzen Master Support:
CPU Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX( ), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Additional information
| Weight | 0,8 kg |
|---|---|
| Dimensions | 16,8 × 13,7 × 13,5 cm |
| Condition | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| CPU Series | AMD Ryzen 9 |
