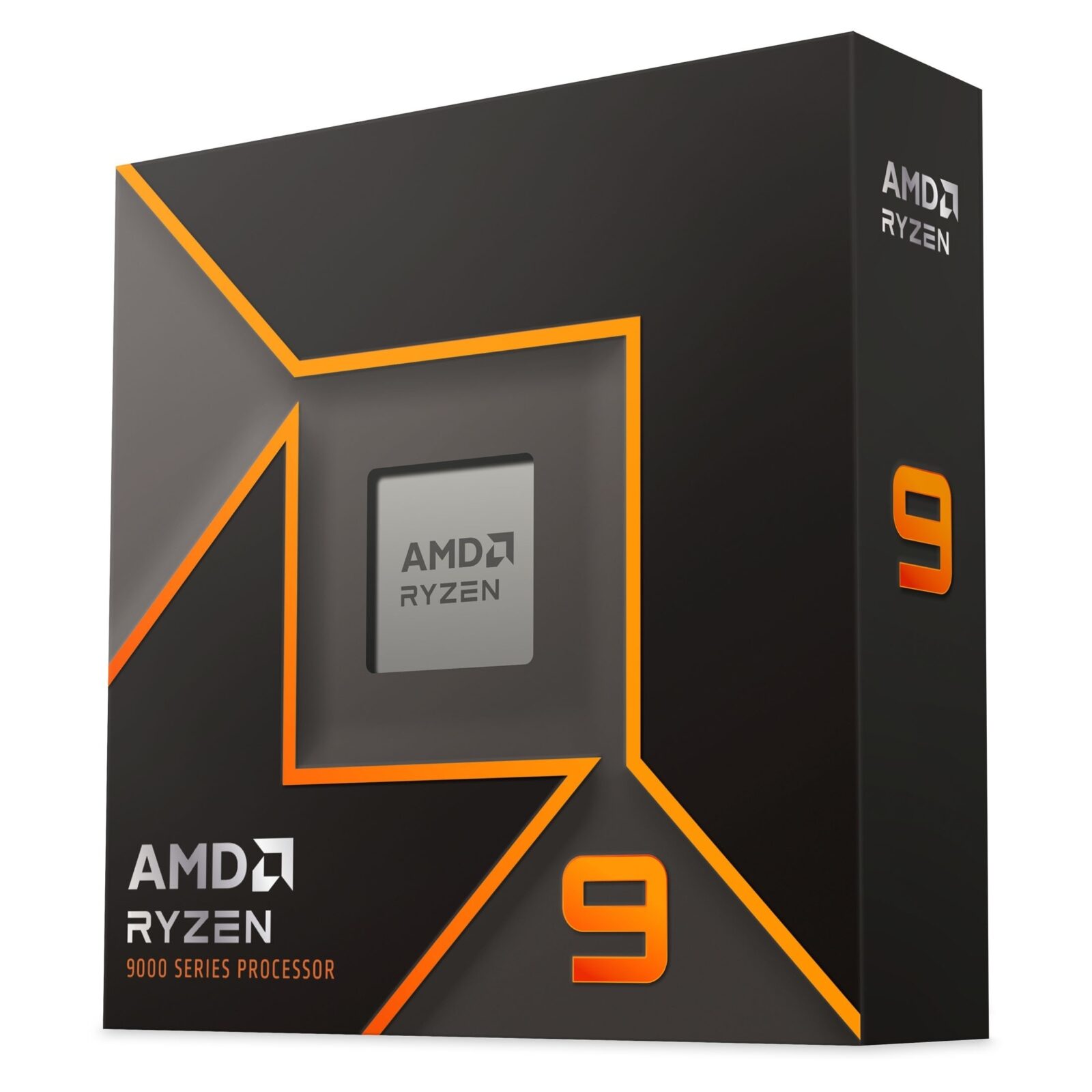

AMD Ryzen 9 9900X 5.60GHz 12-Core Zen 5 Socket AM5 Desktop CPU – Cooler Not Included
R8460
Elevate your computing to new heights with the AMD Ryzen 9000 Series CPUs. These processors represent the pinnacle of desktop performance, engineered for those who demand the best from their systems. With integrated AMD Radeon Graphics, enjoy breathtaking visuals and seamless gameplay without the need for a separate graphics card, making these CPUs ideal for gamers and creators alike.
In stock
Description
FEATURES
AMD Ryzen 9 9900X 5.60GHz Processor (64MB L3 Cache)
Up to 5.60GHz Boost Clock
12 Cores, 24 Threads
AMD 4nm Zen 5 Architecture
TSMC 6nm IO Die
960 KB L1 Cache
12MB L2 Cache
Integrated Radeon RDNA 2 Graphics
Supports AMD X870E, X870, X670E, X670, B650E, B650 Chipsets
Dual-Channel DDR5 Memory Up to 192GB
Up to DDR5-5600MHz Supported
PCI Express Version 5.0 Supported
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0 & Precision Boost Overdrive
AMD StoreMI Technology
Enhanced AI Performance
120W TDP
Socket AM5 Compatible
TECHNICAL SPECIFICATIONS
Brand: AMD
Series: Ryzen 9 (Granite Ridge)
Model: 100-100000662WOF
Family: Ryzen
Series: Ryzen 9000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Architecture: Zen 5
# of CPU Cores: 12
Multithreading (SMT): Yes
# of Threads: 24
Max. Boost Clock: Up to 5.6 GHz
Base Clock: 4.4 GHz
L1 Cache: 960 KB
L2 Cache: 12 MB
L3 Cache: 64 MB
Default TDP: 120W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
Package Die Count: 3
Unlocked for Overclocking: Yes
AMD EXPO Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 95°C
*OS Support: Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity: Native USB 3.2 Gen 2 (10Gbps) Ports: 4, Native USB 2.0 (480Mbps) Ports: 1
PCI Express Version: PCIe 5.0
Native PCIe Lanes (Total/Usable): 28, 24
Additional Usable PCIe Lanes from Motherboard: X870E: 8x Gen4, X870: 4x Gen4, X670E: 12x Gen4, X670: 12x Gen4, B650E: 8x Gen4, B650: 8x Gen4
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 192 GB
System Memory Subtype: UDIMM
Max Memory Speed: 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
ECC Support: Yes (Requires mobo support)
Graphics Capabilities: Graphics Model: AMD Radeon Graphics, Graphics Core Count: 2, Graphics Frequency: 2200 MHz
USB Type-C DisplayPort Alternate Mode: Yes
Additional information
| Weight | 0,1 kg |
|---|---|
| Dimensions | 14,2 × 12,5 × 3,8 cm |
| Condition | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| CPU Series | AMD Ryzen 9 |
