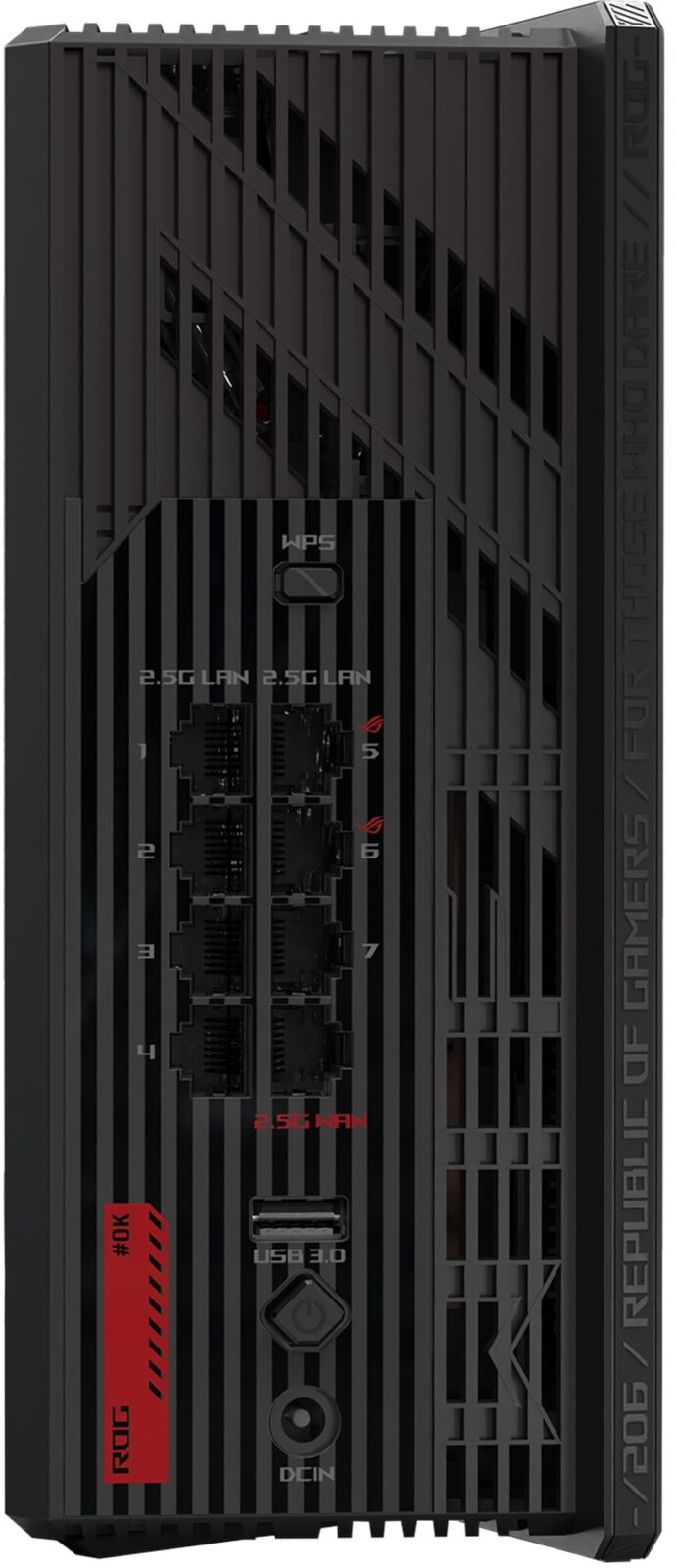

ASUS GS-BE18000 ROG STRIX BE18000 AiMesh Extendable WiFi 7 Wireless Gaming Router

Description

FEATURES
Tri-Band WiFi 7 with Up to 18,000Mbps Speed
2.0GHz Quad-Core Processor
2GB DDR4 RAM, 256MB Flash Storage
8x Internal Antennas
Multi-Link Operation and 4K-QAM
320MHz Channel Support
1x 2.5Gbps WAN and 7x 2.5Gbps LAN Ports
1x USB 3.2 Gen 1 Connectivity
ASUS AiMesh
ROG Gaming Network Support
AiProtection Pro and VPN Fusion
Adaptive QoS and Traffic Analyzer
Game Boost and OpenNAT Features

TECHNICAL SPECIFICATIONS

Brand: ASUS
Series: ROG STRIX BE18000
Model: GS-BE18000
Network Standard: WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
Product Segment: BE18000 ultimate BE performance: 688+5764+11529 Mbps
WiFi Data Rate: 2.4GHz BE: 2×2 (Tx/Rx) 4096 QAM 20/40MHz, up to 688Mbps
5GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
Antenna: 8x internal antenna
Transmit / Receive: 2.4GHz 2×2
5GHz 4×4
6GHz 4×4
Processor: 2.0GHz quad-core processor
Memory: 256 MB Flash and DDR4 2 GB RAM
Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency: 2.4 GHz
5 GHz
6 GHz
Operating Mode: Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
I/O Ports: 1 x 2.5Gbps for WAN
7 x 2.5Gbps for LAN
1 x USB 3.2 Gen1
Buttons: WPS Button, Reset Button, Power Button
LED Indicator: 1x WAN(Internet)
1x LAN
1x WiFi
1x Power
Power Supply: AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 5 A current / 12 V with max. 3 A current
Package Content: GS-BE18000 tri-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight: 927.5 g
Product Dimensions: 225 x 90 x 225 mm
AiMesh: AiMesh
– Primary AiMesh Router
– AiMesh Node
Game: Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
ROG_First
OpenNAT (Game Profile)
Gaming Port
Gaming Network
Parental Control: Allow you to block access to unwanted websites and apps.
Web & Apps Filters
Time Scheduling
Reward
Parental Control Customized Internet Schedule
– Maximum Parental Control profile: 64
– Maximum Parental Control content filter rule: 64
Guest Network: The Guest Network provides Internet connection for guests but restricts access to your local network.
Support Guest Network
– Maximum Guest Network Rule :
2.4 GHz + 5 GHz : 5
Guest Network Connection time limit
Guest Network Encryption :
Open system, WPA/WPA2/WPA3 Personal
Security: AiProtection
VPN
WiFi Encryption : WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise, Open System & OWE
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
– Maximum Firewall Keyword Filter : 64
– Maximum Firewall Network Service Filter : 32
– Maximum Firewall URL Filter : 64
AiProtection: AiProtection Pro
– Router Security Assessment
– Malicious Site Blocking
– Two-Way IPS
– Infected Device Prevention and Blocking
VPN: Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control Adaptive QoS
– Bandwidth Monitor
– Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
– Real-time Traffic Monitor
– Wired Traffic Monitor
– Wireless Traffic Monitor
Traffic Analyzer
– Traffic Analysis Period : Daily, Weekly, Monthly
– Website History
WAN: Automatic IP, Static IP, PPPoE, PPTP, L2TP
PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
Maximum Port Forwarding Rule : 64
Port Triggering
Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN: DHCP Server
IPTV
Manually Assign IP Address
– Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
Wireless: MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
– Maximum MAC Filters : 64
Wireless Scheduler
Wi-Fi Radar
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application 4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface WEB: ASUSWRT
APP: ASUS Router APP
Operating system : ASUSWRT
Administration Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
