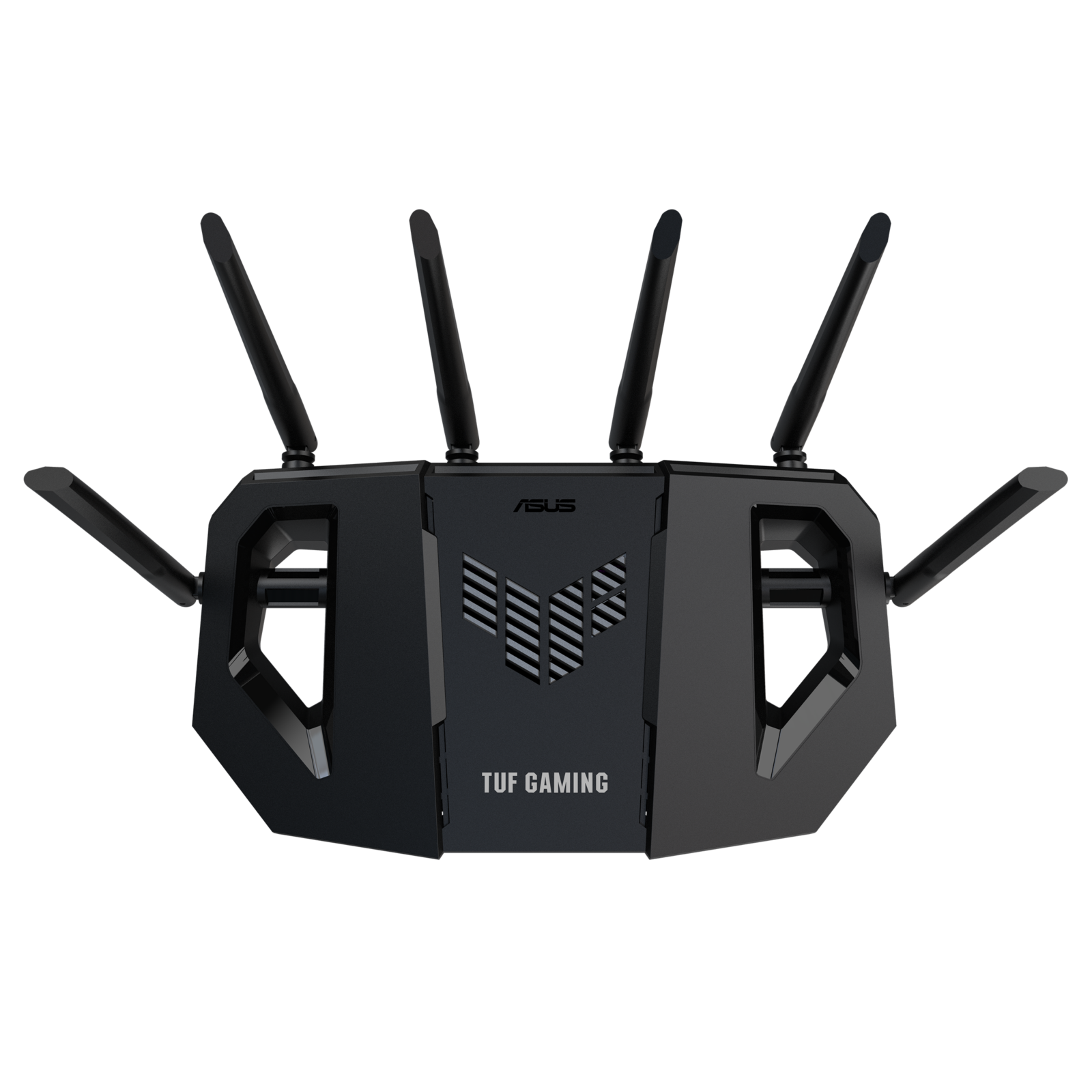

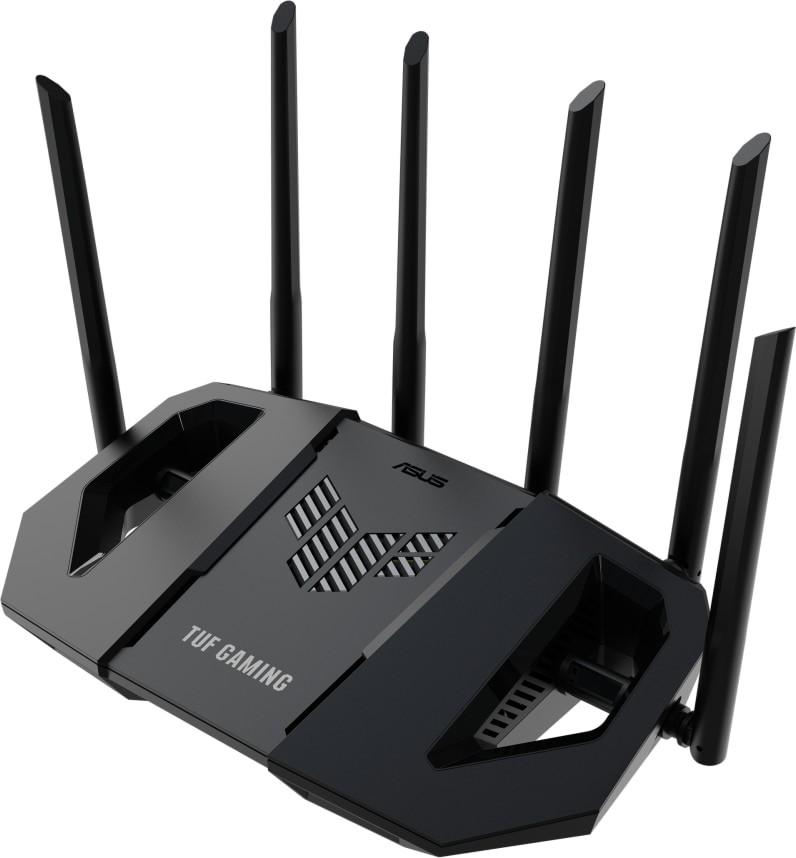

ASUS TUF Gaming BE6500 WiFi 7 Dual-Band 2.5 Gigabit Ethernet AiMesh Wireless Gaming Router

Description

FEATURES
WiFi 7 Dual-Band Router
ASUS AiProtection Pro & AiMesh Technology
ASUS Smart Home Master Technology
6x Internal High-Gain Antennas Work Across 2.4/5GHz Networks
WPA3 Compliant
IPv6 Capable
Supports OFDMA & MU-MIMO
Supports 160Mhz Channels
Supports Universal Beamforming
Adaptive QoS
2.4GHz Bandwidth: Up to 688Mbps
5.0GHz Bandwidth: Up to 5764Mbps

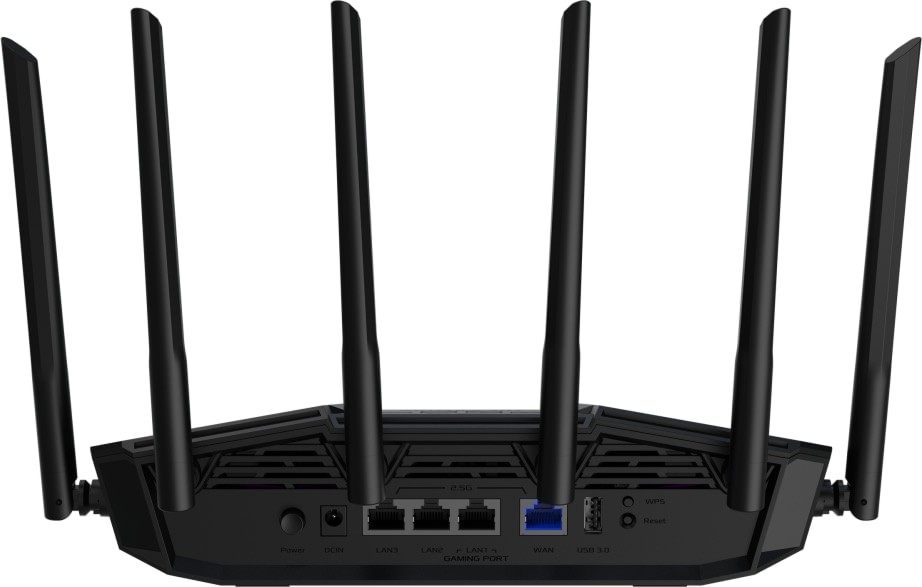

1x 2.5 Gigabit Ethernet RJ-45 WAN Port
3x 2.5 Gigabit Ethernet RJ-45 LAN Ports
1x USB 5Gbps Type-A Port
Gaming Prioritised Port
AiProtection Pro Network Security
ASUSWRT Dashboard
ASUS Router App Support
Colour: Black

TECHNICAL SPECIFICATIONS

Brand: ASUS
Series: TUF Gaming Routers
Model: TUF Gaming BE6500
Standards Implemented: WiFi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
IPv4, IPv6
Data Rates: 5 GHz: 5764 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be)
Operating Frequency: 2.4GHz / 5.0GHz (160MHz)
Antenna Design: 2.4GHz 2×2
5GHz 4×4
Simultaneous Transmit/Receive
MU-MIMO technology

Platform
Processor: 1.5GHz Quad-core Processor
Memory: 256MB Flash, 1GB RAM
Operating System: ASUSWRT with free software updates via internet connection
Automatic firmware upgrades
Operating mode: Access Point, AiMesh Node, Media Bridge, Repeater, Router

Design
Buttons: WPS Button, Reset Button, Power Button
LED Indicators: WAN (Internet) x1, LAN x1, 5GHz x 1, 2.4GHz x1, Power x1
Dimensions: 304 x 174 x 214mm (W x D x H)
Color: Black
Weight: 0.772kg

Connectivity
Ports: 1x 2.5 Gigabit Ethernet Combo WAN Port
3x 2.5 Gigabit Ethernet RJ-45 LAN Ports
1x USB 5Gbps Type-A Port

General
Security Features: AiProtection
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
Gaming Features: Game Boost / Acceleration
Gear Accelerator
OpenNAT (Game Profile)
Gaming Port
Parental Controls: Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
Router Administration: ASUS Router App for iOS, iPadOS, Android
Web Browser
USB Feature Support: Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Wireless Capabilities: MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
WAN Capabilities: Internet Connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec
Dual WAN
3G / 4G LTE dongle support
Port forwarding
Port triggering
DMZ
DDNS
PPTP Pass-Through
L2TP Pass-Through
IPSec Pass-Through
RTSP Pass-Through
H.323 Pass-Through
SIP Pass-Through
PPPoE Relay
LAN Capabilities: DHCP Server
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
VPN Capabilities: Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Support Nord VPN
Traffic Control: Adaptive QoS
Traditional QoS
Traffic Monitor
Traffic Analyzer
Administration: Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
