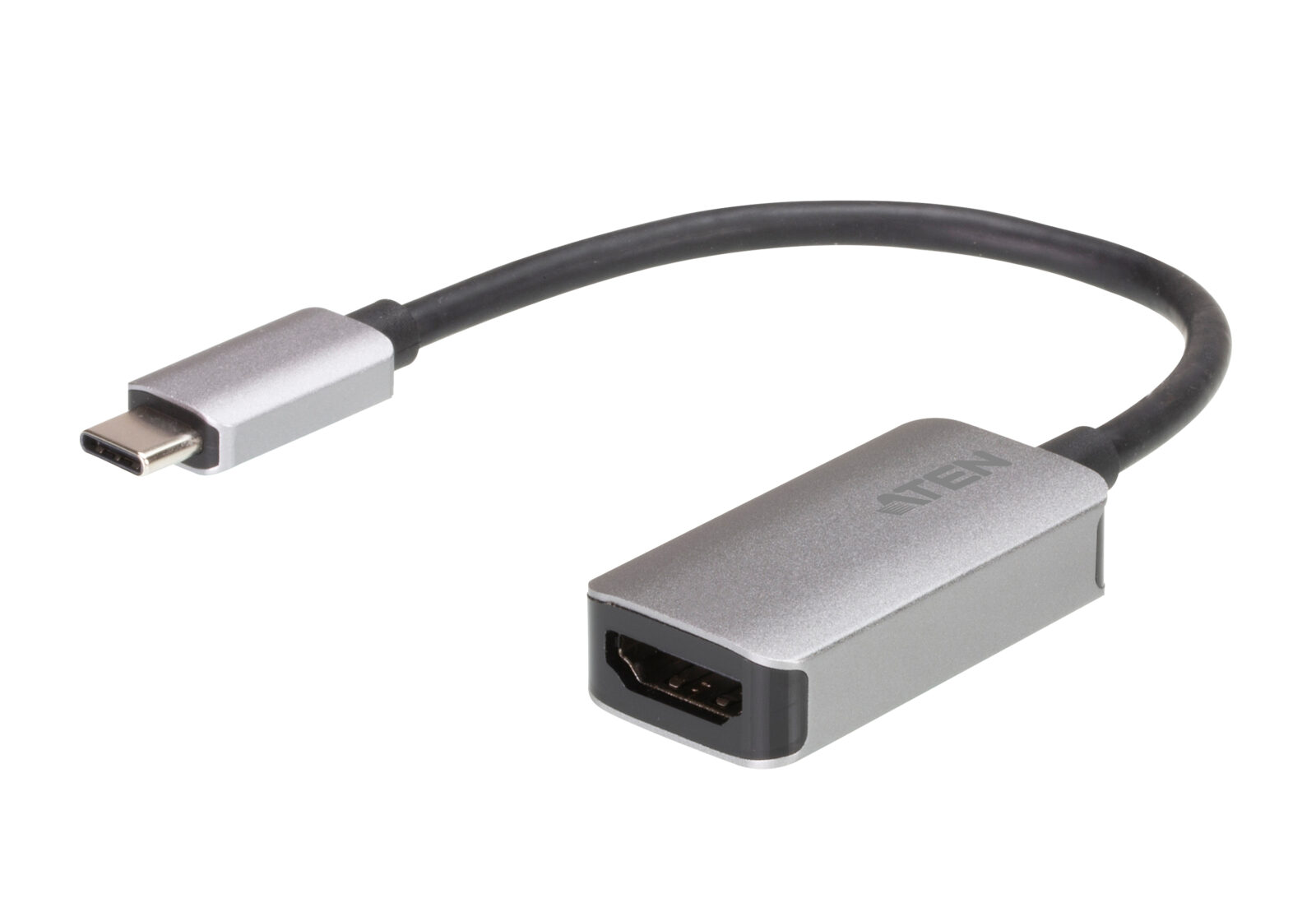

ATEN USB Type-C to HDMI 4K 60 Hz Adapter
R465
The UC3008A1 is a USB-C to HDMI 4K adapter that allows you to transfer the video of your USB-C equipped laptop, tablet or smartphones to a monitor, TV or projector. The UC3008A1 supports high video resolutions up to 4096 x 2160@60Hz so that you can conveniently scale your display output to a bigger monitor or do presentations from a projector. In addition, it’s does not require external drivers or additional power.
In stock
Description
FEATURES
Transfers high-quality video from a USB-C enabled laptop or smartphone to a HDMI 4K@60Hz (4096 x 2160@60Hz) display, TV or projector*
Premium casing can resists signal interference during video transmission and heat insulation
Compact and lightweight design
Works with all major operating systems: Windows®, OS X®, iPad Pro and Android
TECHNICAL SPECIFICATIONS
Video Input
Interfaces: 15.4 cm USB 3.2 Gen1 Type-C Cable
Video Output
Interfaces: 1 x HDMI Female
Video
Max. Pixel Clock: 594MHZ
Max. Resolution: 4096 x 2160@60Hz
Compliance: USB 3.2 Gen 1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible)
HDMI 2.0
HDCP 2.2
USB Billboard Device Class
Audio
Output: 1 x HDMI Female
Power Consumption: DC5V:1W:5BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
System Requirements: Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
Mac OS X 10.12 and above, USB-C enabled computer
Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
iOS 12.1 and above, iPad Pro 3rd generation (2018)
Environmental
Operating Temperature: 0–40°C
Storage Temperature: -20–60°C
Humidity: 0–80% RH, Non-condensing
Physical Properties
Housing Aluminum
Weight: 0.02 kg ( 0.04 lb )
Dimensions (L x W x H): 4.32 x 1.10 x 2.20 cm
(1.7 x 0.43 x 0.87 in.)
Additional information
| Weight | 0,1 kg |
|---|---|
| Dimensions | 4,3 × 1,1 × 2,2 cm |
| Condition |
