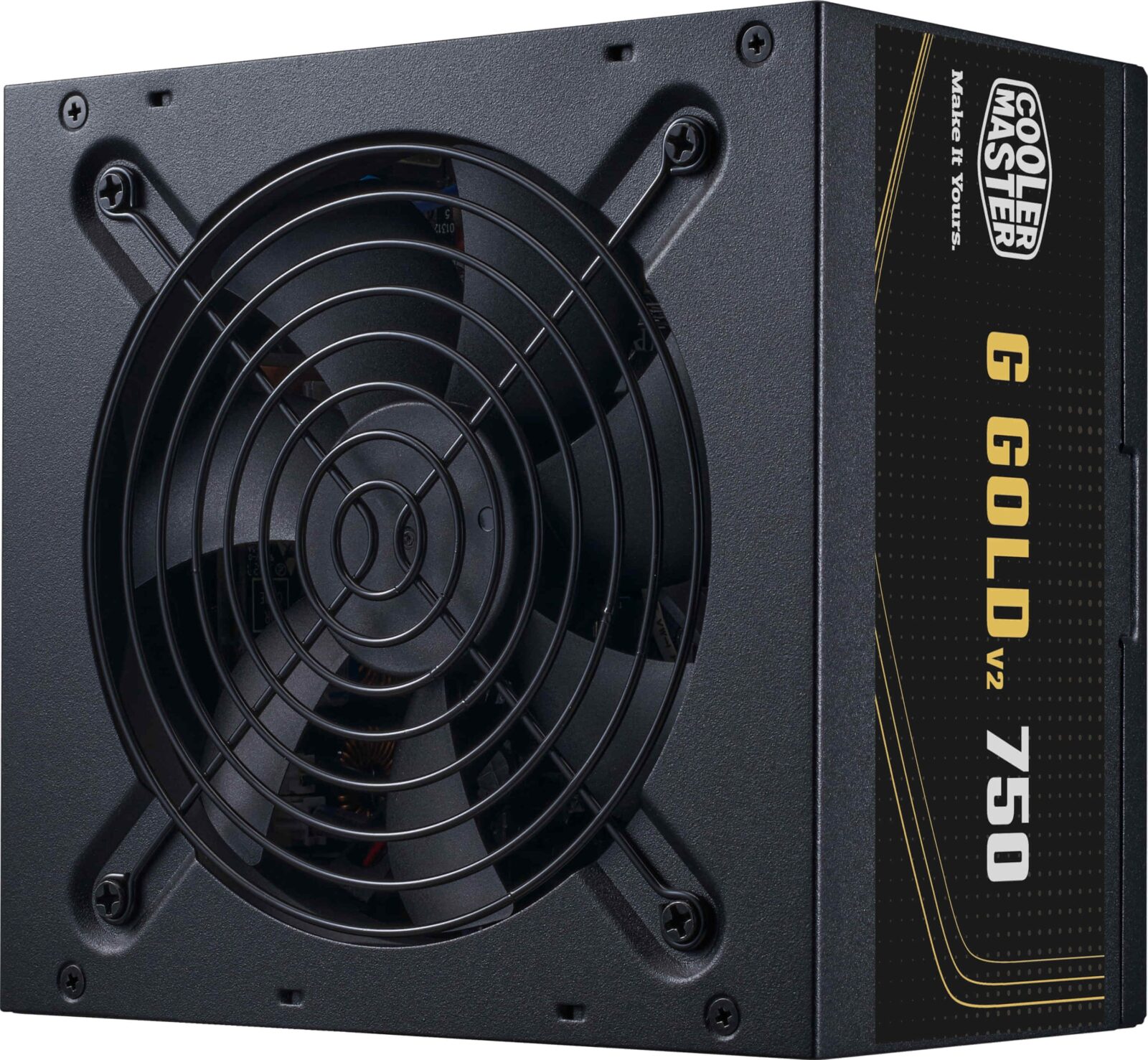

Cooler Master G Gold 750 V2 750W 80 Plus Gold Non-Modular Black Desktop Power Supply

Description

FEATURES
750W Maximum Power
Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
80 Plus Gold Certified
>90% @ Typical Load
High Efficiency & Stable Power Output
120mm Hydro Dynamic Bearing (HDB) Fan
Low Output Voltage Ripple
Complies With ATX 12V v3.1 Specification
Non-Modular Design
UVP, OVP, OPP, OTP, SCP
High Temperature Resilience

TECHNICAL SPECIFICATIONS

Brand: Cooler Master
Series: G Gold 750 V2
Model: MPE-7502-ACAAG
Maximum Power: 750W
80 Plus Efficiency: 80 Plus Gold Certified
≥ 90% @ Typical Load
Colour: Black
Fan: 120mm
Hydro Dynamic Bearing (HDB)
Modular Design: Non-Modular

Connectors
24 Pin ATX: 1x ATX 24 Pin Connectors
EPS (CPU): 2x EPS 8-Pin / 4+4 Pin Connectors
PCIe: 4x PCI-e 6+2 Pin Connectors
SATA: 6x SATA Connectors
Four-Pin Peripheral: 3x Peripheral 4 Pin Connectors

Cable Length
ATX Cable: 1x (500mm)
EPS Cable: 1x (550+120mm)
PCIe Cable: 2x (500+120mm)
SATA Cable: 2x (400+150+150mm)
Four-Pin Peripheral Cable: 1x (400+150+150mm)

Input
Input Voltage: 100V – 240V
AC Input: 10 – 6A
Input Frequency Range: 50 – 60Hz

Output
Rail: +3.3V, +5V, +12V, -12V, +5Vstb
Max Output: 20A, 20A, 62.5A, 0.3A, 3A

General
MTBF: >100,000 hours @ 25°C ambient
Hold Up Time: ≥ 16ms
Safety Certification: UVP / OVP / OPP / OTP / SCP
Regulatory: cTUVus,TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)
Power Good Signal: 100ms – 150ms
ATX Version: ATX 12V Ver. 3.1
PFC: Active PFC
Dimensions: 140mm x 150mm x 86mm
Weight: 1.75Kg
