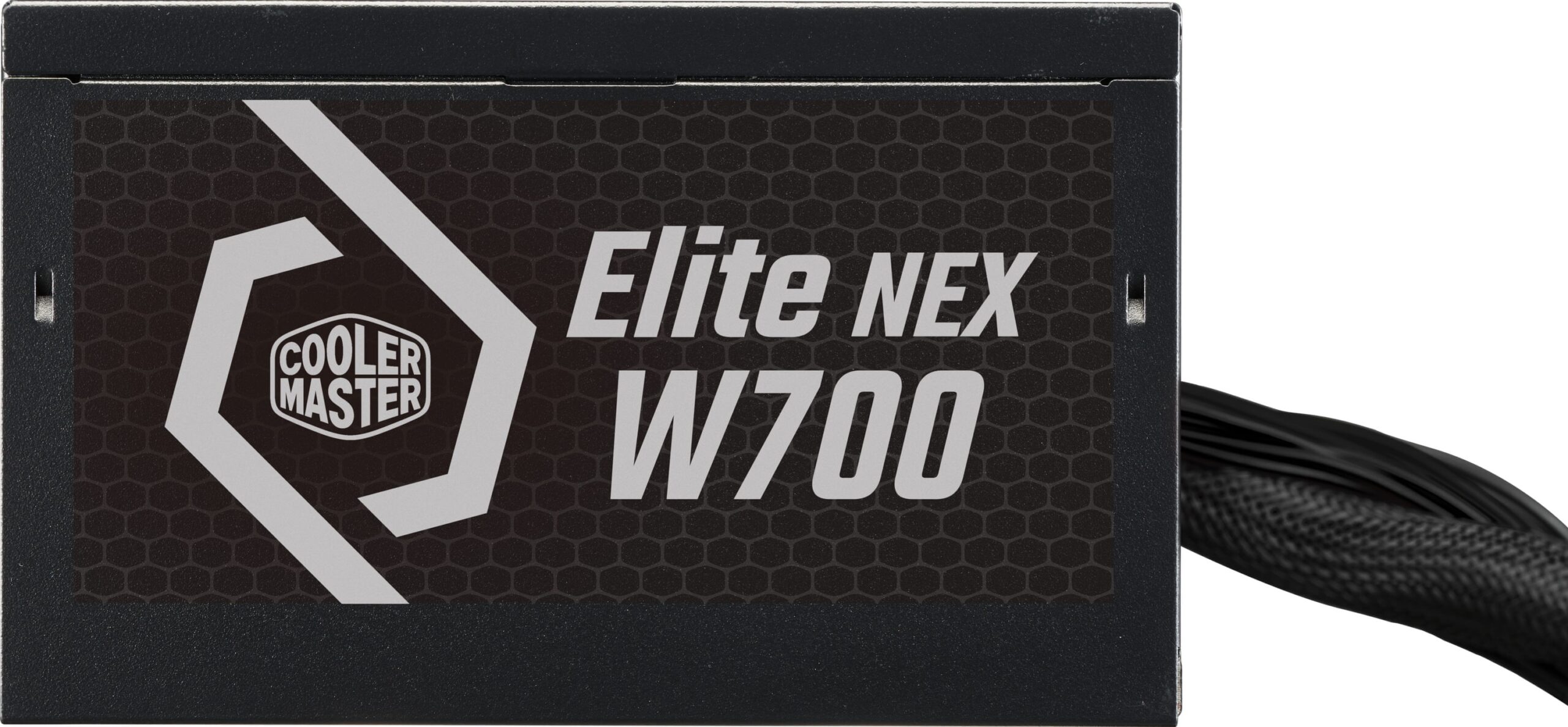

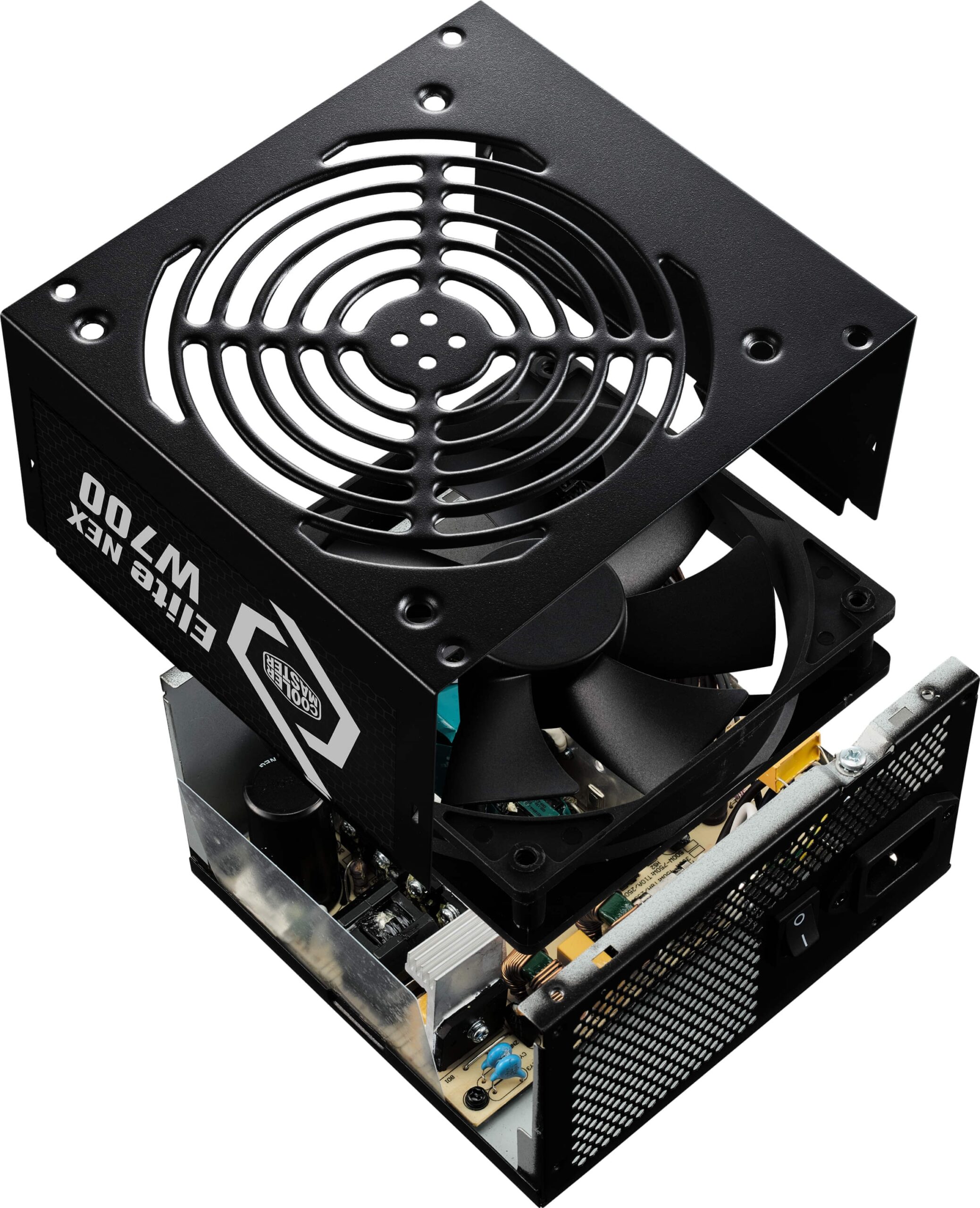

Cooler Master Elite NEX White W700 700W Desktop Power Supply

Description

FEATURES
Active PFC and a dual forward topology design
Excellent temperature resistance
High peak power tolerance
Durability, reliability, and safety
80 Plus standard certified efficiency

TECHNICAL SPECIFICATIONS

ATX Version: ATX 12V Ver. 2.41
80 Plus Efficiency: White
PFC: Active PFC
Input Voltage: 200-240V
Input Current: 5A
Input Frequency: 50-60Hz
Dimensions (LxWxH): 140 x 150 x 86 mm
Fan Size: 120mm
Fan Bearing: Sleeve Fan
Efficiency: ≥ 85% @ Typical Load
ErP 2014 Lot 3: Yes
Operating Temperature: 0-40°C
Power Good Signal: 100 – 500 ms
Hold Up Time: ≥10ms at 100% load
MTBF: >100,000 Hours
Protections: OVP / OPP / SCP / UVP / OTP / Inrush Protection
Regulatory: TUV, CE, CCC, EAC, UKCA

Connectors
ATX 24 Pin: 1
EPS 8 Pin/4+4 Pin: 2
SATA: 5
Peripheral 4 Pin: 3
PCI-e 6+2 Pin: 2
Form Factor: ATX
