Corsair FRAME 4000D WOOD RS Tempered Glass Black Walnut Steel E-ATX Mid Tower Desktop Chassis
R2520
The Corsair FRAME 4000D RS Wood modular PC case combines premium walnut styling with high-airflow engineering for modern gaming and creator systems. Equipped with four RS120 PWM fans, extensive radiator support, reverse-connector motherboard compatibility, and a flexible modular layout, it is designed to simplify building while maximizing cooling efficiency. Its spacious interior supports large GPUs, tall CPU coolers, and advanced cable management, making it ideal for high-performance PC builds.
In stock
Description
FEATURES

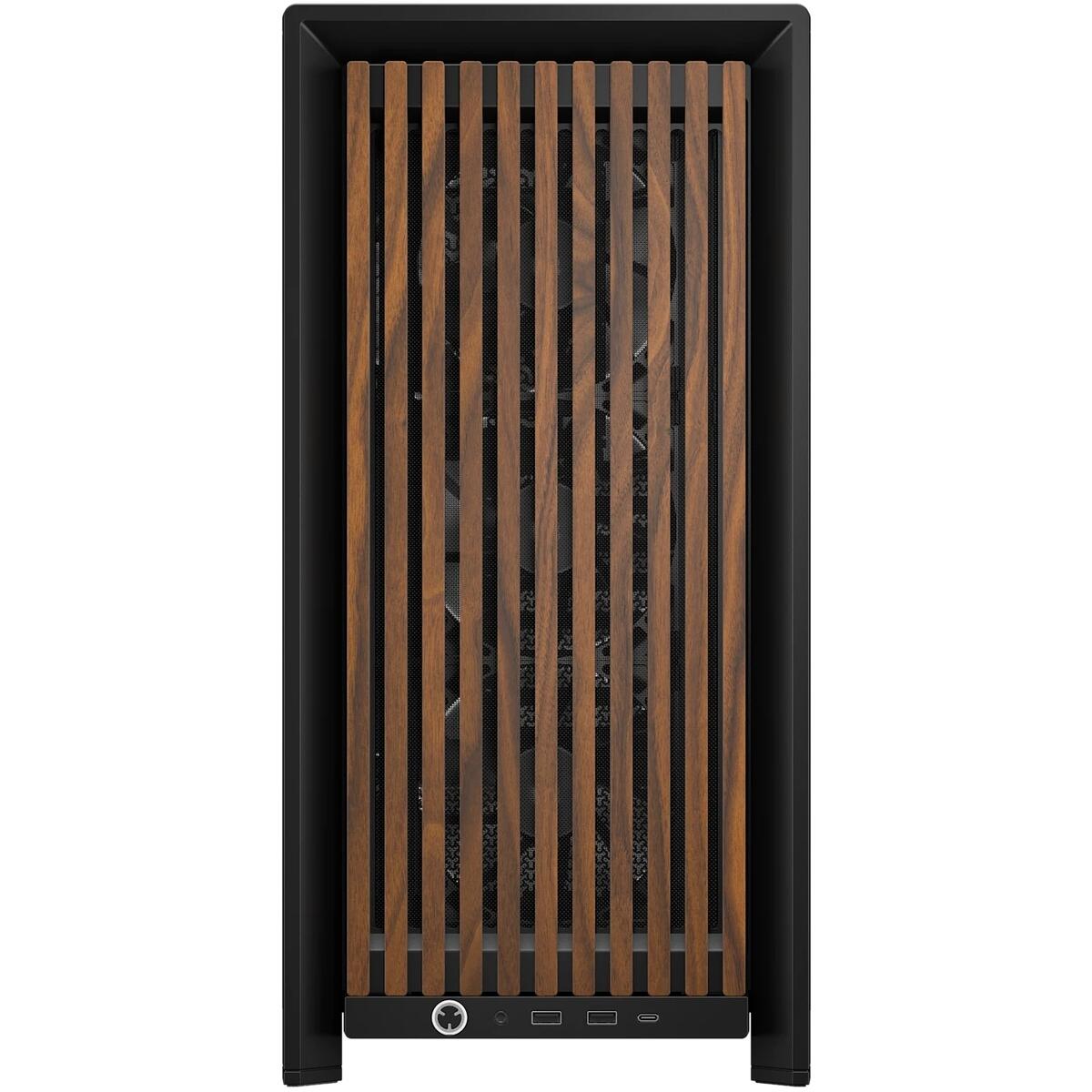

Real Wood (Walnut) Front Panel
Mid-Tower E-ATX Form Factor
Steel, Solid Wood, Tempered Glass & Plastic Construction
Supports E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards
Supports Reverse Hidden Connector Motherboards
4x Pre-Installed Corsair RS120 Daisy-Chain PWM Fans
Corsair InfiniRail Adjustable Fan Mounting System
1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A
1x 3.5mm Audio Jack
7x Horizontal or 3x Vertical PCI-E Slots
Drive Bays: 1x 3.5″ Internal, 2x 2.5″ Internal
Supports Up to 13x 120mm or 7x 140mm Fans
Supports 2x 200mm Front Fans
Supports Up to 360mm Radiators (Top, Front, Side)
Built-in GPU Anti-Sag Stabilization Arm
GPU Clearance: Up to 430mm
CPU Cooler Clearance: Up to 170mm
PSU Clearance: Up to 220mm
TECHNICAL SPECIFICATIONS
Brand: Corsair
Series: FRAME 4000D WOOD RS
Model: CC-9011340-WW
Colour: Black/Walnut
Case Size: Mid-Tower
Materials: Steel, Solid Wood, Tempered Glass, Plastic
Left Side Panel: Tempered Glass
Right Side Panel: Steel
Physical Details
Dimensions: 486mm (H) x 490mm (L) x 239mm (W)
Weight: 11.82kg
Motherboard Support: Mini-ITX
MicroATX
ATX
E-ATX (up to 305mm x 277mm)
Expansion Slots: 7x Horizontal
3x Vertical
Drive Bays: 1x Internal 3.5″
2x Internal 2.5″
PSU Support: ATX
Clearance
CPU Cooler Height: Up to 170mm
PSU Length: Up to 220mm
GPU Length: Up to 430mm
Cable Routing Space: 37mm
Front I/O
USB Ports: 1x USB 3.2 Gen 2×2 Type-C
2x USB 3.2 Gen 1 Type-A
Audio: 1x Audio In/Out
Front I/O Motherboard Connections: 1x USB 3.2 Gen 2×2 Type-E
1x USB 3.2 Gen 1 20-Pin
1x HD Audio
1x F_PANEL
Pre-Installed Fans
Included Fans: 4x RS120 PWM (RS Series)
Fan Support
Top: 3x 120mm, 2x 140mm
Front: 3x 120mm, 2x 140mm, 2x 200mm
Bottom: 3x 120mm
Side: 3x 120mm, 2x 140mm
Rear: 1x 120mm, 1x 140mm
Radiator Support
Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm
Top: 360mm, 280mm, 240mm
Front: 360mm, 280mm, 240mm
Bottom: None
Side: 360mm, 280mm, 240mm
Rear: 140mm, 120mm
Compatible Liquid Coolers: H60, H100, H115, H150, NAUTILUS, TITAN
Features
Front Panel: Real Wood (Walnut)
Fan Mounting System: Corsair InfiniRail (Adjustable up to 200mm Front, 140mm Roof)
GPU Anti-Sag: GPU Anti-Sag Stabilization Arm Included
Cable Shroud: Yes
Dust Filtration: Yes
Reverse Connector Motherboard Support: Yes
Vertical GPU Mount Support: Supported (Riser Card Sold Separately)
Additional information
| Weight | 11,9 kg |
|---|---|
| Dimensions | 48,6 × 23,9 × 49 cm |
