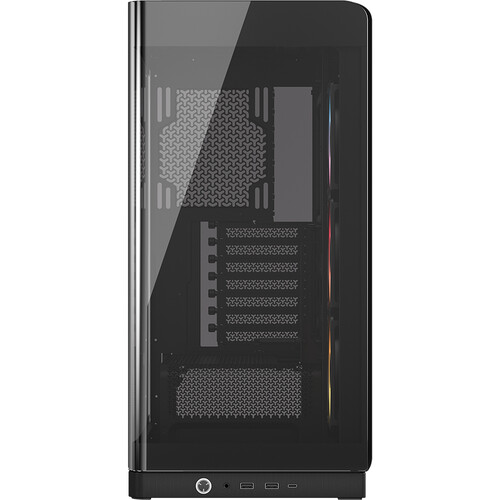

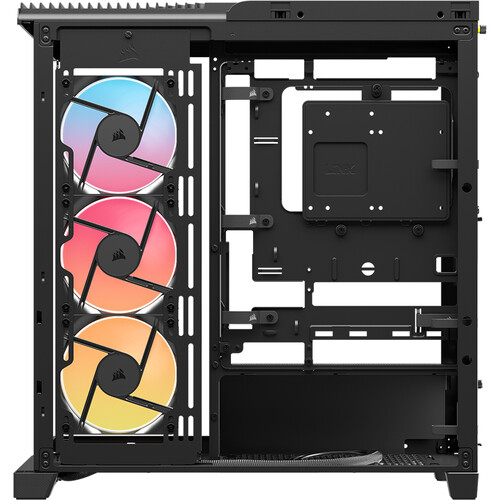

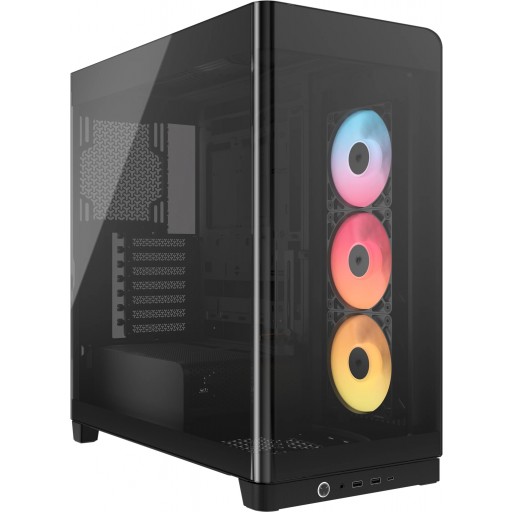

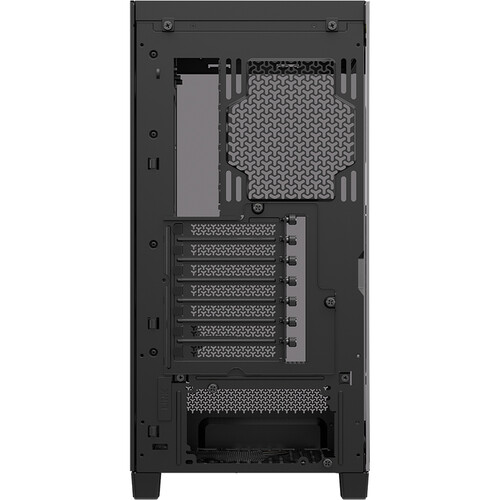

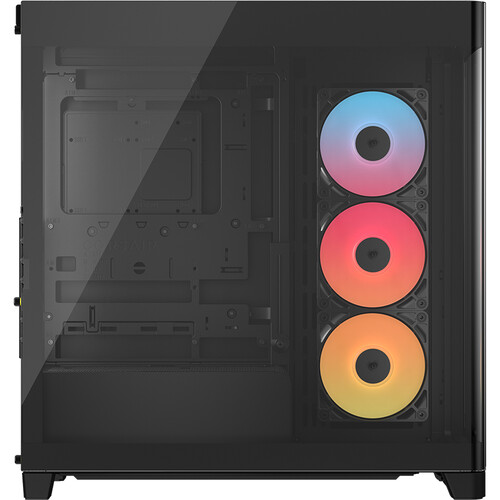

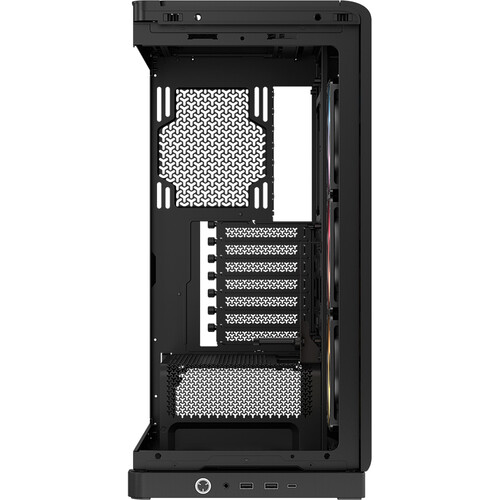

Corsair FRAME 4500X RS-R ARGB Tempered Glass Black Steel ATX Mid Tower Desktop Chassis

Description

FEATURES
Mid Tower Desktop Chassis
Panoramic Curved Tempered Glass Front And Side Panel
Supports Mini-ITX, Micro-ATX, ATX, E-ATX Motherboards
1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio In/Out
InfiniRail Fan Mounting System
Compatible With Reverse Connector Motherboards
7 Horizontal + 3 Vertical PCI Expansion Slots
Vertical GPU Mount Support
GPU Anti-Sag Stabilization Arm
3x Corsair RS-R ARGB 120mm Reverse-Rotor Fans Included
Radiator Support Up to 360mm (Top & Side)
CPU Cooler Clearance: 185mm
GPU Cooler Clearance: 460mm
Cable Routing Clearance: 37mm

TECHNICAL SPECIFICATIONS

Brand: Corsair
Series: FRAME 4500X
Model: CC-9011314-WW

Physical Details
Colour: Black
Materials: Steel
Tempered Glass
3D-Y Airflow Steel
Plastic
Side Panel: Tempered Glass (Curved)
I/O Ports: 1x USB 3.2 Gen 2 Type-C
2x USB 3.2 Gen 1 Type-A
1x Audio In/Out
Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX
305mm x 277mm
Expansion Slots: 7 Horizontal + 3 Vertical
Drive Bays: 1x 3.5″
2x 2.5″
PSU Support: ATX
Dimensions: 478mm x 499mm x 246mm

Pre-Installed Fans
Side: 3x 120mm RS-R ARGB

Fan Support
Front: None
Top: 3x 120mm or 2x 140mm
Rear: 1x 120mm or 1x 140mm
Bottom: 3x 120mm or 1x 140mm
Side: 3x 120mm or 2x 140mm

Radiator Support
Front: None
Top: 360mm, 280mm, 240mm
Rear: 140mm, 120mm
Side: 360mm, 280mm, 240mm

Clearance
CPU Cooler Height Limitation: 185mm
PSU Length Limitation: 250mm
GPU Length Limitation: 460mm
Cable Routing Clearence: 37mm

General
Dust Filters: Yes
Chassis Lighting: ARGB
Vertical GPU Mount: Supported (Riser Sold Separately)
GPU Stabilizer Arm: Included
Reverse Connector Support: Yes
Cable Management: Yes, with Tie-Downs
Reusable Screw Box: Included
