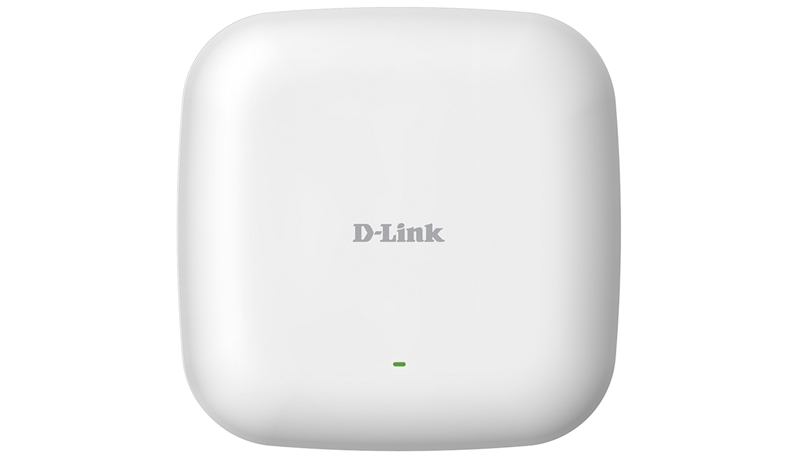

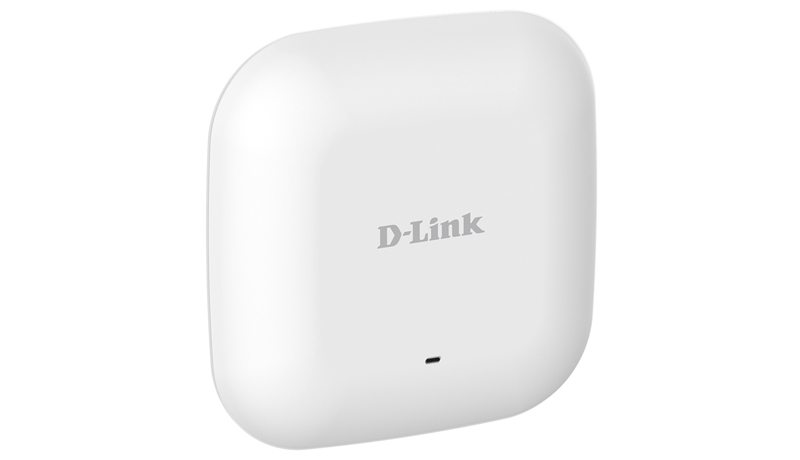

D-Link DAP-2230 N300 Wireless N PoE Access Point

Description

TECHNICAL SPECIFICATIONS

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: N

Design
Product colour: White
LED indicators: Power,Status

Operational conditions
Operating temperature (T-T): 0 – 40
Operating relative humidity (H-H): 0 – 90
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -20 – 65

Power
Input current: 1
Input voltage: 12
Power over Ethernet (PoE): Y

Features
2.4 GHz: Y
Maximum data transfer rate: 300
Frequency band: 2.4 – 2.4835
Ethernet LAN data rates: 10,100
5 GHz: N

Security
MAC address filtering: Y
Number of SSID supported: 8

Management features
Web-based management: Y

Antenna
Antennas quantity: 2
Antenna features: Integrated antenna
Antenna gain level (max): 3
