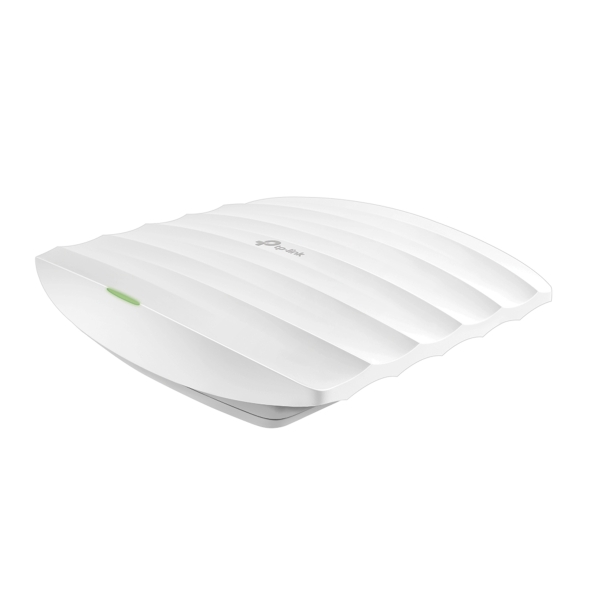

TP-Link EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Description

FEATURES
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Omada SDN- Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites- all controlled from a single interface anywhere, anytime.

Secure Guest Network with Facebook Wi-Fi and SMS Authentication
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

TECHNICAL SPECIFICATIONS

HARDWARE FEATURES
Interface: Gigabit Ethernet (RJ-45) Port x 1 (Support IEEE802.3af/at PoE and Passive PoE)
Physical Security Lock: Yes
Button: Reset
Power Supply: 802.3af/at PoE
48V Passive PoE (+4, 5pins, -7, 8pins. PoE Adapter IS NOT Included)
Power Consumption: EU: 9.7W
US: 12.1W
Dimensions ( W x D x H ): 8.1 x 7.1 x 1.5 in (205.5 x 181.5 x 37.1 mm)
Antenna Type: 3 Internal Omni
2.4 GHz: 4 dBi
5 GHz: 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz:Up to 867 Mbps
2.4 GHz:Up to 450 Mbps
Wireless Functions: Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power: CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)

MANAGEMENT
Omada App: Yes
Centralized Management: Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access: Yes, through
OC300
OC200
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
Certification: CE, FCC, RoHS
Package Contents: AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
Mounting Kits
Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment: Operating Temperature: 0-40 °C (32-104 °F)
Storage Temperature: -40-70 °C (-40-158 °F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
