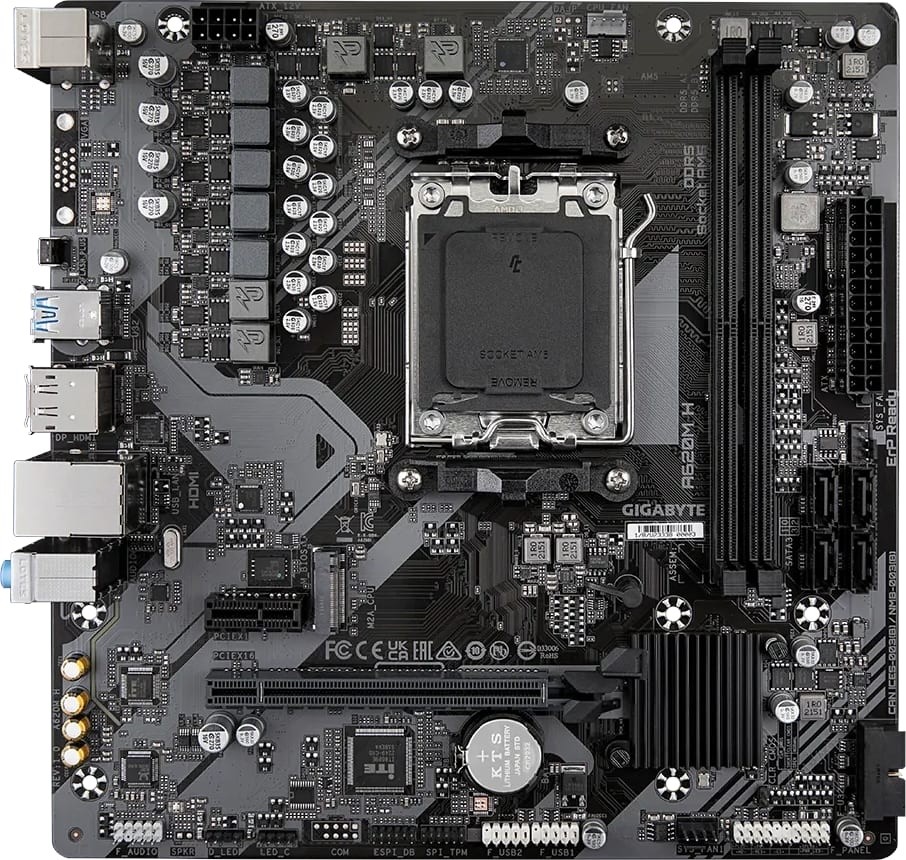

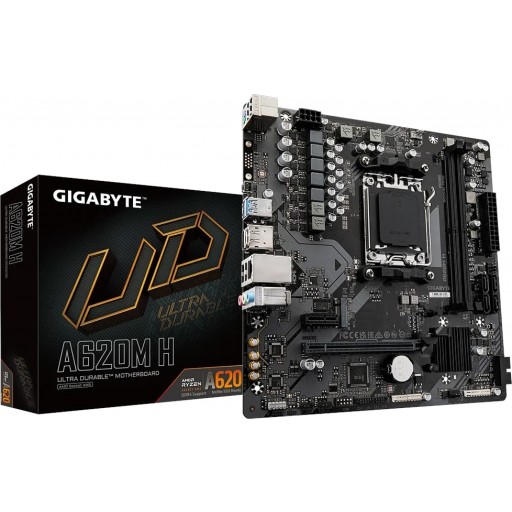

Gigabyte A620M H Rev 1.0 AMD A620 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Description

FEATURES
Micro-ATX Form Factor
AMD A620 Chipset
Socket AM5
Supports Ryzen 7000-Series Processors
Q-Flash Plus BIOS Flash Supports Future Processors
2x DDR5 DIMM Slots, Supports Up to 96GB
Supports up to DDR5-6400 (OC)
Supports AMD EXPO Memory
1x PCIe 4.0 x16 Slot
1x PCIe 3.0 x1 Slot
1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
4x SATA 3.0 Ports
2x USB 5Gb/s Type-A Ports
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port, 1x DisplayPort 1.4 Port
1x PS/2 Combo Port
3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
1x Q-Flash Plus button
Realtek Gigabit Ethernet RJ-45 LAN Port
Realtek High-Definition Audio Codec
5+2+2 Digital VRM Solution
Gigabyte PCIe EZ-Latch Design
Gigabyte M.2 Latch Design
Gigabyte RGB Fusion Software
Gigabyte Smart Fan 6 Utility
Supports Windows 10, Windows 11 64-bit

TECHNICAL SPECIFICATIONS

Brand: Gigabyte
Series: UD Series
Model: A620M H Rev 1.0
CPU Support: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset: AMD A620

Memory Support
AMD Ryzen 7000 Series: Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Video
HDMI: 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160@60 Hz, Supports HDCP 2.3
DisplayPort: 1x DisplayPort 1.4 port, supporting a maximum resolution of 3840×2160@144 Hz, Support for HDCP 2.3
Integrated AMD graphics Required. Actual support may vary by CPU.

Expansion Slots
CPU Direct: 1x PCIe 4.0 x16 Physical, x16 Electrical Slot
AMD A620 Chipset: 1x PCIe 3.0 x1 Physical Slot

Storage
CPU Direct: 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support)
AMD A620 Chipset: 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0 and RAID 1 for SATA storage devices

Networking
LAN: Realtek Gigabit LAN Port 10/100/1000Mbps
WiFi: N/A
Bluetooth: N/A

Audio
Codec: Realtek High Definition Audio
2/4/5.1/7.1-channel support with front-panel jack retasking

Connectivity
Ports: 2x USB 5Gb/s Type-A Ports
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port
1x Q-Flash Plus button
1x DisplayPort 1.4 Port
1x PS/2 Combo Port
3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
Buttons: 1x Q-Flash Plus button

General
Internal Connectors: 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
2x system fan headers
1x addressable LED strip header
1x RGB LED strip header
1x M.2 Socket 3 connector
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1x Clear CMOS jumper
LED Displays: Gigabyte Q-Flash LED
I/O Controller: iTE I/O Controller Chip
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro-ATX Form Factor, 230 x 225 mm (H x W)
Operating System Support: Windows 10 64-bit
Windows 11 64-bit
