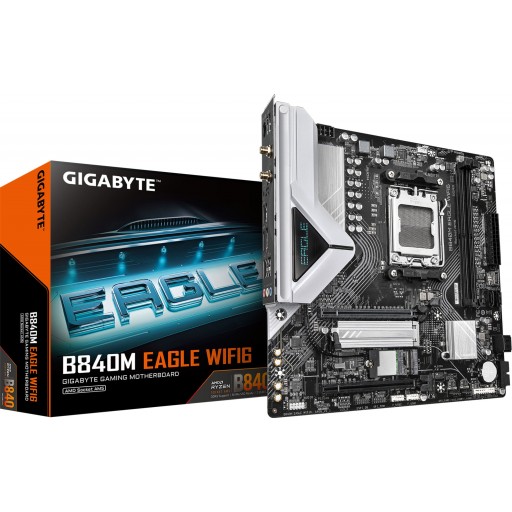

Gigabyte B840M EAGLE WIFI6 AMD B840 Ryzen Socket AM5 Micro-ATX Desktop Motherboard
R2575
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
In stock
Description
FEATURES
Micro-ATX Form Factor
AMD B840 Chipset
Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
2x DDR5 DIMM Slots, Supports Up to 128GB (2x64GB)
Supports Up to DDR5-7200 (OC)
Supports AMD EXPO & Intel XMP 3.0 Modules
1x PCIe 4.0 x16 Slot (x16 Physical)
1x PCIe 3.0 x4 Slot (x16 Physical)
1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot
4x SATA 3.0 Ports
2x USB 5Gbps Type-A Ports
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port (TMDS), 1x DisplayPort 1.4 Port
1x PS/2 Combo Port (Keyboard/Mouse)
3x 3.5mm Audio Jacks (Headphone, Microphone)
2x SMA Connectors
Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Realtek WiFi 6 Dual-Band Adapter, Bluetooth 5.3
Realtek High-Definition Audio Codec
PCIe x16 EZ-Latch Mechanism
Digital 5+2+2 Phase VRM Solution
Gigabyte Q-Flash Plus Button
Gigabyte RGB Fusion
Supports Windows 11
TECHNICAL SPECIFICATIONS
Brand: Gigabyte
Series: EAGLE Series
Model: B840M EAGLE WIFI6
CPU Support: Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset: AMD B840 Chipset
Memory Support
AMD B840 Chipset: Support for 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
DisplayPort: 1x DisplayPort 1.4 port, supporting a maximum resolution of 3840×2160@144 Hz, supports HDCP & HDR
HDMI: 1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096×2160@60 Hz, supports HDCP & HDR
Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct: 1x PCIe 4.0 x16 Slot (x16 Physical) (PCIEX16)
AMD B840 Chipset: 1x PCIe 3.0 x4 Slots (x16 Physical) ((PCIEX4))
Slot Configurations: PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct: 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs
AMD B840 Chipset: 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs
4x SATA 6Gbps connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN: Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
WiFi: Realtek RTL8851BE WiFi 6 Dual-Band Adapter
Bluetooth: Bluetooth 5.3
Audio
Codec: Realtek High-Definition Audio Codec
Support for 7.1 Surround with front-panel jack retasking, jack detection

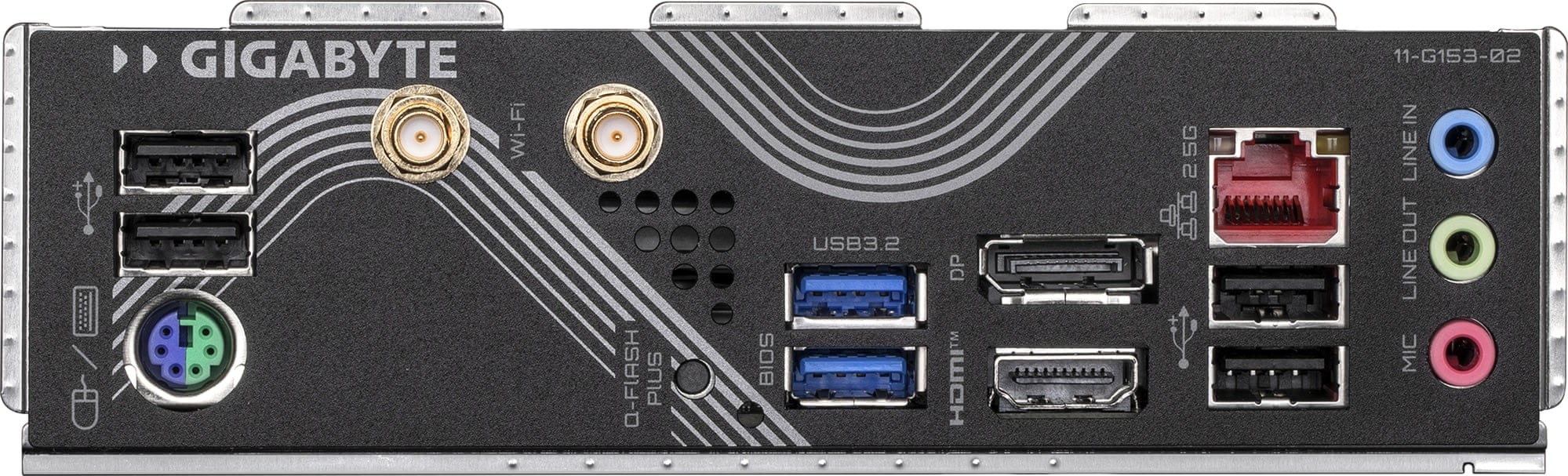

Connectivity
Ports: 2x USB 5Gbps Type-A Ports
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port (TMDS)
1x DisplayPort 1.4 Port
1x PS/2 Combo Port (Keyboard/Mouse)
3x 3.5mm Audio Jacks (Headphone, Microphone)
2x SMA Connectors
1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons: 1x Q-Flash Plus button

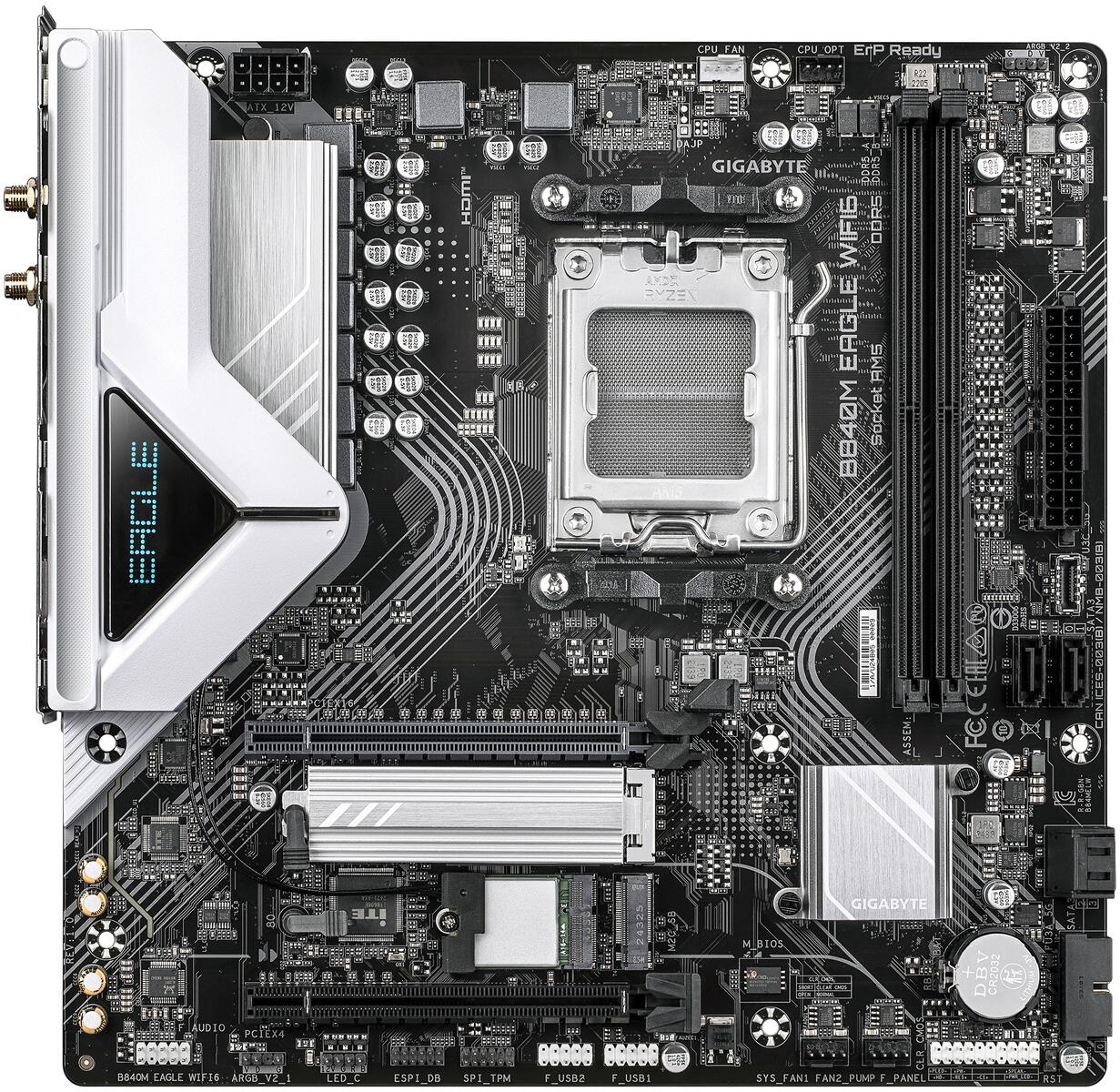

General
Internal Connectors: 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x CPU fan/water cooling pump header
1x system fan header
1x system fan/water cooling pump header
2x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
2x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C header, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1x reset jumper
1x Clear CMOS jumper
LEDs: Q-LED Status LEDs (BOOT, CPU, VGA, MEM)
I/O Controller: iTE I/O Controller Chip
BIOS: 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support: Windows 11 64-bit
Additional information
| Weight | 1,5 kg |
|---|---|
| Dimensions | 27 × 27 × 7 cm |
| Condition | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Motherboard Chipset | AMD B840 |
| Form Factor | Micro ATX |
Frequently Asked Questions
Q: Which processors are compatible with this motherboard?
A: This motherboard uses the AM5 socket layout. Make sure your CPU matches this socket type before buying.
Q: What chipset does this motherboard have?
A: This board is built with the AMD B840 chipset, which determines the features, connectivity, and overclocking options it supports.
Q: What size case do I need for this motherboard?
A: This is an Micro ATX motherboard. Make sure your PC chassis supports this specific size layout.
