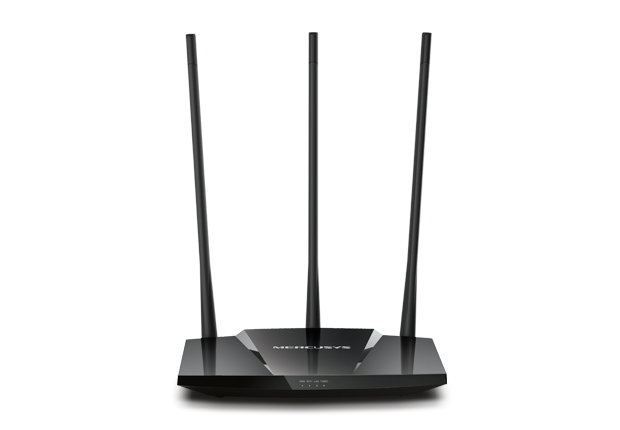

Mercusys MW330HP 300Mbps High Power Wireless N Router

Description

FEATURES
Ideal for fast video streaming, online gaming and file downloads
Instantly enhances the Wi-Fi signal and expands wireless coverage
Provides up to 2x transmission power, strong enough to penetrate walls and other obstacles
High gain 7dBi antennas and strongly boosts wireless range and coverage
Intuitive webpage guides you through the setup process in minutes

TECHNICAL SPECIFICATIONS

Wireless
Wireless Standards: IEEE 802.11b/g/n
Frequency: 2.402-2.482GHz
Signal Rate:
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity:
270M: -74dBm@10% PER
130M: -76dBm@10% PER
54M: -78dBm@10% PER
11M: -90dBm@10% PER
6 M: -94dBm@10% PER
1 M: -96dBm@10% PER
Transmission Power: <20dBm (EIRP)
Wireless Security: WPA-PSK / WPA2-PSK
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridging

Software
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management:
Access Control
Local Management
Remote Management DHCP Server
Port Forwarding: Virtual Server, UPnP, DMZ
Firewall Security: IP and MAC Address Binding
Guest Network: 2.4GHz Guest Network

Hardware
Dimensions (W X D X H): 192mm×127mm×36mm
Interfaces: 3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port
Button: TURBO, WPS/RESET
External Power Supply: 9V/0.6A
Antenna Type: 3 * 7dBi

Others
Package Contents:
300Mbps High Power Wireless N Router
( MW330HP )
Power Adapter
Quick Installation Guide
Ethernet Cable
Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
