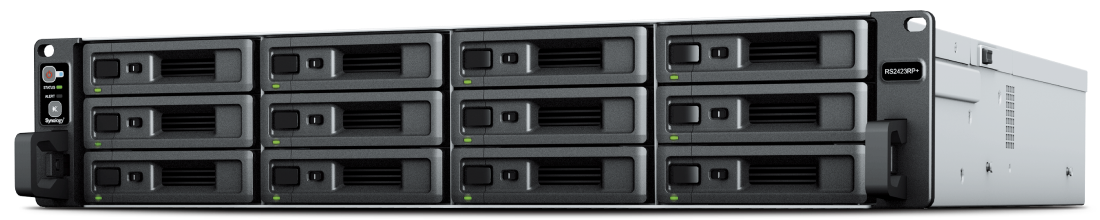

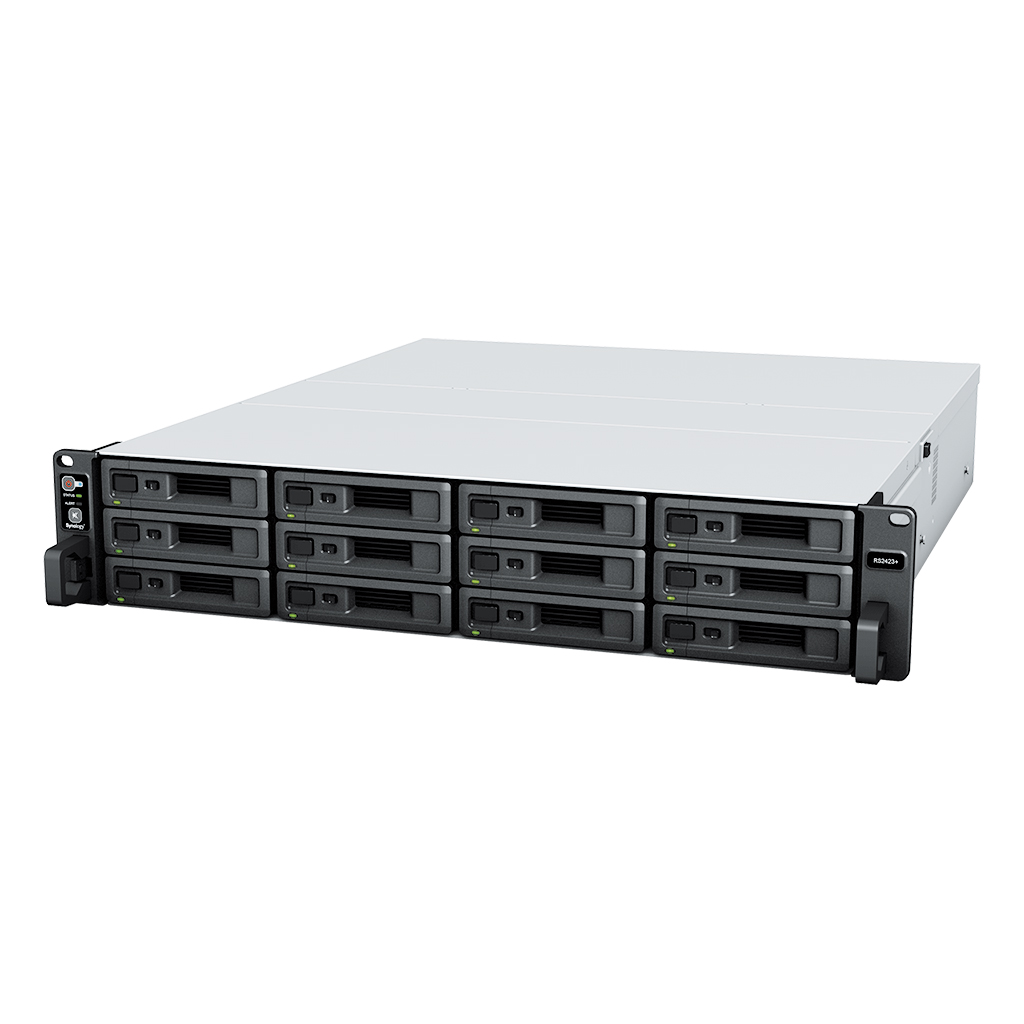

Synology RackStation RS2423+ 2U 12-bay SATA 3 6.0Gbps AMD Ryzen V1780B 3.6GHz Quad-Core 8GB(8GBx1) DDR4 ECC Rackmount NAS
R56405
The RS2423RP+/RS2423+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput. They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
In stock
Description
FEATURES
AMD Ryzen V1780B 3.6GHz Quad-Core CPU
8GB (1x 8GB) DDR4 ECC Ram
PCIe 3.0 x8/x4 Expansion Slot
1x RJ-45 10GbE LAN Port
2x RJ-45 1GbE LAN Port
2x USB 3.2 Gen 1 Ports
RAID 0, 1, 5, 6, 10, Hybrid, Basic, JBOD
Scalability: Up to 24 Drive Bays with RX1223RP
TECHNICAAL SPECIFICATIONS
Brand: Synology
Series: RackStation
Model: RackStation RS2423+
CPU
CPU Model: AMD Ryzen V1780B
CPU Quantity: 1
CPU Architecture: 64-bit
Core Count: 4-core
CPU Frequency: 3.35 GHz (base)
3.6 GHz (turbo)
Hardware Encryption Engine (AES-NI): Yes
Memory
System Memory: 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed: 8 GB (8 GB x 1)
Total Memory Slots: 2
Maximum Memory Capacity: 32 GB (16 GB x 2)
Storage
Drive Bays: 12
Maximum Drive Bays with Expansion Unit: 24 (RX1223RP x 1)
Compatible Drive Type: 3.5″ SATA HDD
2.5″ SATA SSD
Hot Swappable Drive: Yes

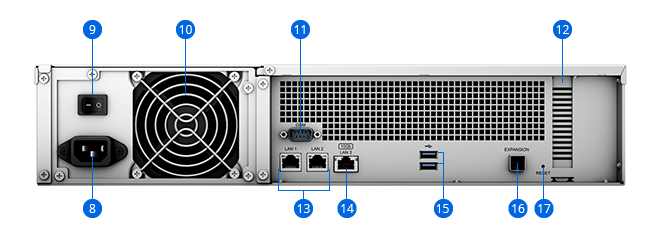

External Ports
RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port: 1
USB 3.2 Gen 1 Port*: 2
Expansion Port: 1
PCIe
PCIe Expansion: 1 x Gen3 x8 slot (x4 link)
Appearance
Form Factor (RU): 2U
Size: 88 mm x 482 mm x 552 mm
Weight: 11.5 kg
Rack Installation Support: 4-post 19″ rack (Synology Rail Kit – RKS-02)
Notes: The rail kit is sold separately
Others
System Fan: 60 mm x 60 mm x 3 pcs
Fan Speed Mode: Full-Speed Mode
Cool Mode
Quiet Mode
Noise Level: 52.3 dB(A)
Power Supply Unit / Adapter: 500 W
AC Input Power Voltage: 100 V to 240 V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption: 119.95 W (Access)
46.21 W (HDD Hibernation)
British Thermal Unit: 409.56 BTU/hr (Access)
157.78 BTU/hr (HDD Hibernation)
Features: Easy Replacement System Fan
Power Recovery
Scheduled Power On / Off
Wake on LAN / WAN
Temperature
Operating Temperature: 0°C to 35°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5% to 95% RH
Additional information
| Weight | 11,5 kg |
|---|---|
| Dimensions | 48,2 × 55,2 × 9 cm |
| Condition |
