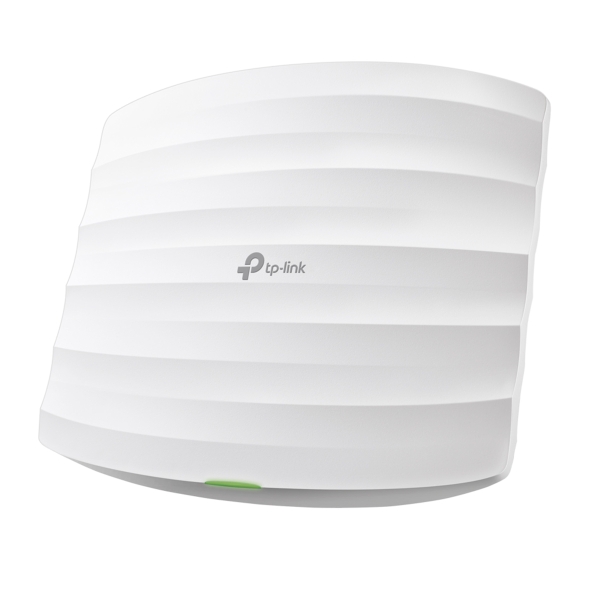

TP-LINK EAP110 300Mbps Wireless N Ceiling Mount Access Point

Description

FEATURES
Free cloud centralized management and Omada app for ultra convenience and easy management
Supports passive PoE for convenient installation up to 100meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats
Supports management vlan for an enhanced network management

TECHNICAL SPECIFICATIONS

HARDWARE FEATURES
Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button: Reset
Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption: 2.8W
Dimensions ( W x D x H ): 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
Antenna Internal: 2* 4dBi Omni
Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage: 60㎡(650ft²)§
Concurrent Clients: 100+
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4-2.4835GHz
Signal Rate: 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity: 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions: Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power: CE:
≤19dBm(EIRP)
FCC:
≤21dBm

Management Features
Omada App: Yes
Omada Cloud Controller: Yes
Centralized Management: • Omada Hardware Controller
• Omada Software Controller
Omada Controller Software: Yes
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS
Certification: CE, FCC, RoHS

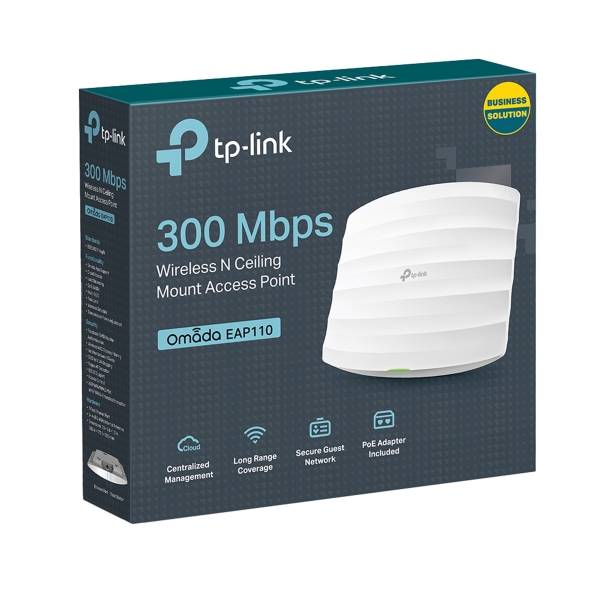

Package Content: 300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Installation Guide
System Requirements: Microsoft Windows 10/8/7/Vista/XP
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
