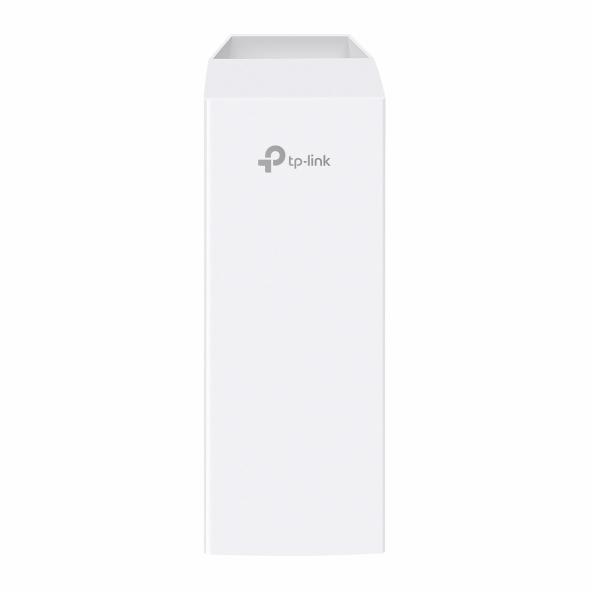

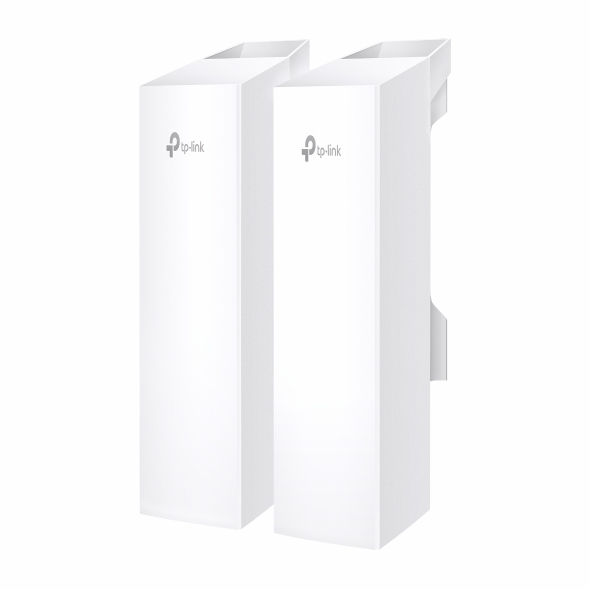

TP-Link EAP215 Bridge kit Omada 5GHz 867 Mbps Long-Range Indoor/Outdoor Wireless Bridge

Description

FEATURES
802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
Ideal for long-range wireless transmission up to 5 km.*2
Auto-pairing and agile LEDs for efficient deployment.
3× Gigabit Ethernet ports for more high-speed IP camera connections.
Supports Omada SDN for remote and centralized management.
IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
Supports Passive PoE for flexible deployment (adapter included).

TECHNICAL SPECIFICATIONS

Product Code: EAP215-BRIDGE-KITspacer

HARDWARE FEATURES

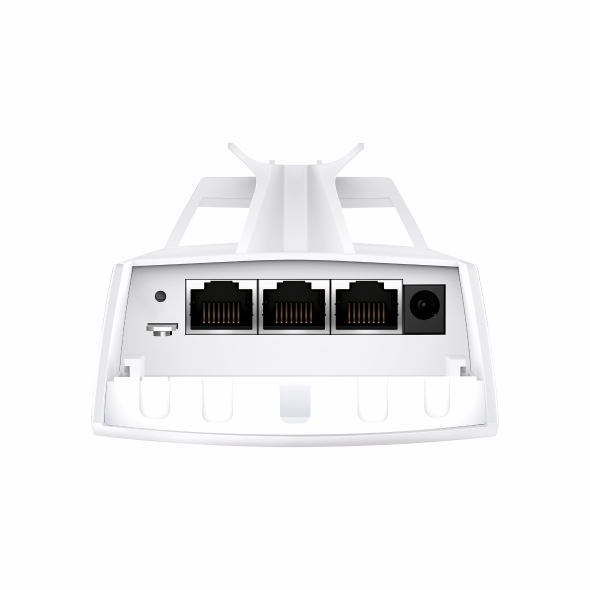

Interface: 3x Gigabit Ethernet Ports
Button: Reset
Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption: 11.5W
Dimensions ( W x D x H ): 3.1 x 2.4 x 8.8 in (79 x 60 x 224 mm)
Antenna Type: Internal 2 x 2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi
Horizontal:35°, Vertical: 35°
Weatherproof Enclosure: IP65

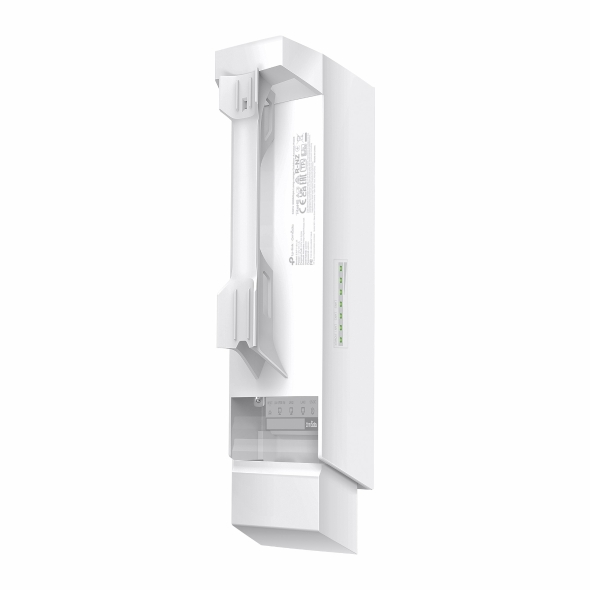

Mounting: Pole mounting (Accessories included)

WIRELESS FEATURES
Coverage: 5000m(16400ft)
Wireless Standards: IEEE 802.11 a/b/g/n/ac
Frequency: 5 GHz
Signal Rate: 5 GHz: Up to 867 Mbps
Wireless Functions: Mesh
MU-MIMO: 5G 2×2 MU-MIMO DL
Load Balance
Beamforming
Seamless Roaming(802.11r)
Airtime Fairness
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Wireless Security: VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power: CE:
<23dBm (5 GHz, band 1 / 2, EIRP)
<30dBm (5 GHz band3, EIRP)
FCC:
<22dBm (5 GHz band1/4)

MANAGEMENT
Omada App: Yes
Restore & Backup: Yes
Firmware update via Web: Yes
NTP: Yes
Centralized Management: Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
SSH: Yes
Web-based Management: Yes

OTHERS
Certification: CE, FCC, RoHS
Package Contents: EAP215-Bridge KIT
Passive PoE Adapter
Power Cord
Installation Guide
Mounting Kit
Environment: Operating Temperature: -40 °C-70 °C (-40 °F-158 °F)
Storage Temperature: -40 °C-70 °C (-40 °F-158 °F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
