Description
FEATURES
Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Easily expand wireless coverage at a push of Range Extender button
Tether App allows easy access and management using any mobile device
LED Control function includes a Night Mode for peaceful sleep
TECHNICAL SPECIFICATIONS
HARDWARE FEATURES
Ports: –
Button: WPS Button, Reset Button
Input Power: 100-240V~50/60Hz
Power Consumption: 3.3W
Dimensions ( W x D x H ): 65.8 × 75.2 × 110mm
Antenna: 2 Internal Antennas
HARDWARE
Buttons: · Button: WPS Button, Reset Button
WIRELESS FEATURES
Wireless Standards: IEEE 802.11b/g/n
Frequency: 2.4GHz
Signal Rate: 300Mbps at 2.4GHz
Working Modes: Range Extender
Reception Sensitivity: 2.4GHz:
11g 54Mbps: -80dBm, 11n HT20 MCS7: -79dBm
11n HT40 MCS7: -76dBm
Transmit Power CE: <15dBm
Wireless Functions: Enable/Disable Wireless Radio, Power
Schedule
Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK
encryptions
Transmission Power: CE: <15dBm
OTHERS
Certification: CE, RoHS

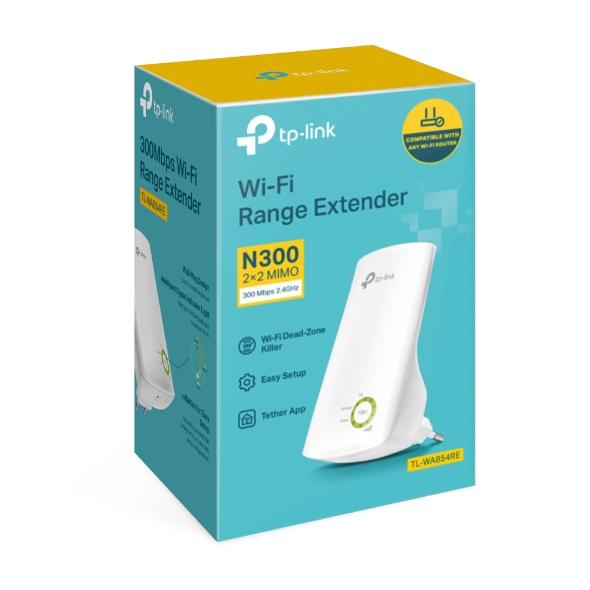

Package Contents: 300Mbps Wi-Fi Range Extender TL-WA854RE
Quick Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or other Java-enabled browser
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
