RCT Mid ATX Case with DVD drive slot With 550W PSU 1 Fan
R730

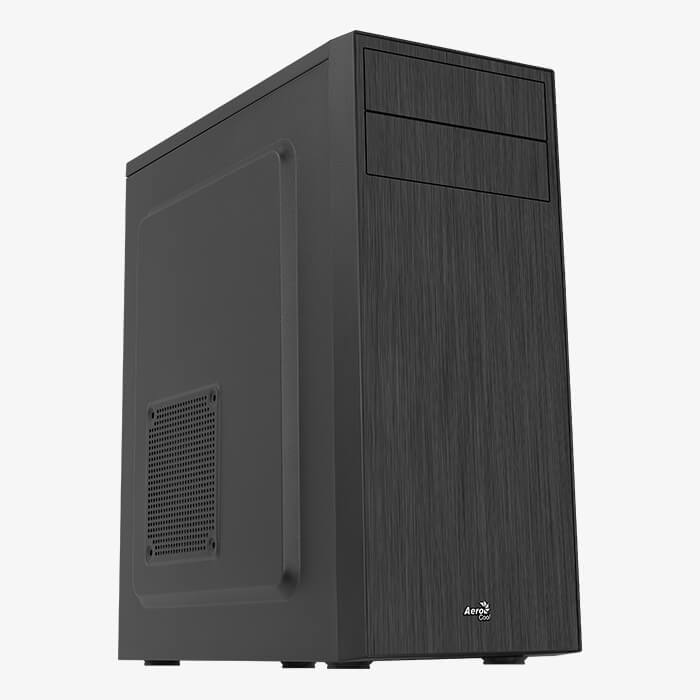

Affordable mid tower case features a compact design, making it perfect for office use. Comes with a brushed aluminum style front panel to deliver a professional, elegant look. Supports air cooling in the front, side, and rear of the case to enhance cooling performance and comes equipped with a 80mm fan in the rear.
In stock
Description
FEATURES
Comes with a brushed aluminum style front panel
Supports air cooling in the front, rear, and side of the case
Supports liquid cooling in the front of the case

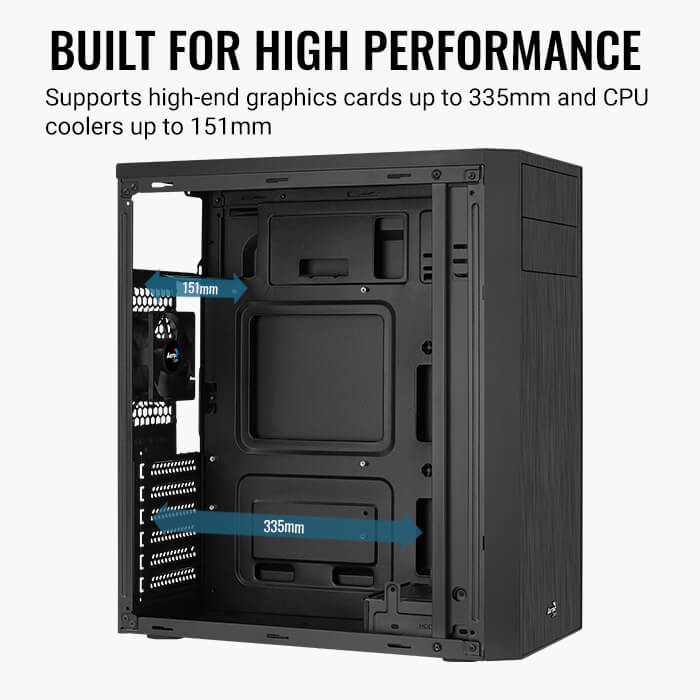

Supports CPU coolers up to 151mm
Supports high-end graphics cards up to 335mm
Supports up to 1 x 5.25” ODD, 3 x 3.5” HDDs (2 x 3.5”/2.5″) and 4 x 2.5” SSDs
TECHNICAL SPECIFICATIONS
Model: CS-1103-S-BK-v1
Case Type: Mid Tower
Color: Black
Body Material: SPCC
Front Panel Material: ABS
Steel Thickness: 0.5mm
Motherboards: ATX/micro-ATX/mini-ITX
Case Dimensions (Overall): 190.1 x 412.8 x 381.6mm (W x H x D)
5.25” Drive Bays: 1
3.5” Drive Bay: 3 Max. (2 x 3.5”/2.5″)
2.5” Drive Bay: 4 Max. (2 x 3.5”/2.5″)
Expansion Slots: 6
GPU Clearance: Supports GPU up to 335mm
CPU Cooler Clearance: Supports CPU coolers up to 151mm
I/O Ports: USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic.
Air Cooling: Front: 120mm x 2 (Optional)
Rear: 80mm x 1 or 92mm x 1 (Includes 80mm Fan x 1)
Side: 120mm x 1 (Optional)

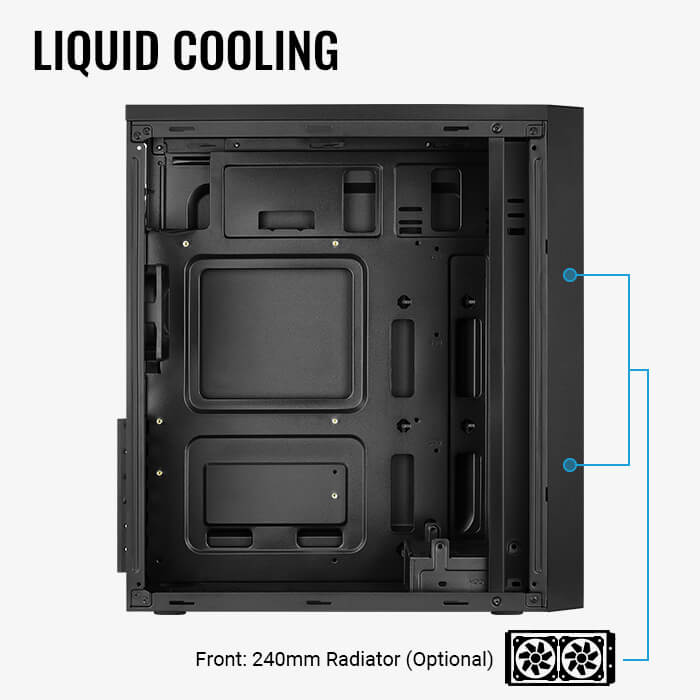

Liquid Cooling: Front: 240mm Radiator (Optional)
Net Weight/Gross Weight: 2.7kg/3.39kg
Internal Cable Management Depth: 19mm
Power Supply: Standard ATX PSU (Optional)
Additional information
| Weight | 3,4 kg |
|---|---|
| Dimensions | 38,2 × 19 × 41,3 cm |
| Condition | |
| Form Factor | ATX, Micro ATX, Mini ITX |
| Side Panel | Non-Windowed Side Panel |
| PSU Form Factor Support | ATX |
| Chassis Max CPU Cooler Height | 151mm |
| Chassis Max GPU Length | 335mm |
| Chassis Max Radiator Length | 240mm |
Frequently Asked Questions
Q: What motherboard sizes fit in this case?
A: This case supports ATX, Micro ATX, Mini ITX motherboard form factors.
Q: What is the maximum graphics card length this case supports?
A: This case can accommodate graphics cards up to 335mm in length.
Q: What is the maximum CPU cooler height this case supports?
A: This case has clearance for air coolers up to 151mm tall.
Q: What size liquid cooling radiator can I install in this case?
A: This case supports radiators up to 240mm in length.
Q: What power supply form factor does this case support?
A: This case is designed to fit ATX power supplies.
Q: Does this case have a windowed side panel?
A: This case features a Non-Windowed Side Panel, so you can show off the internal components.
