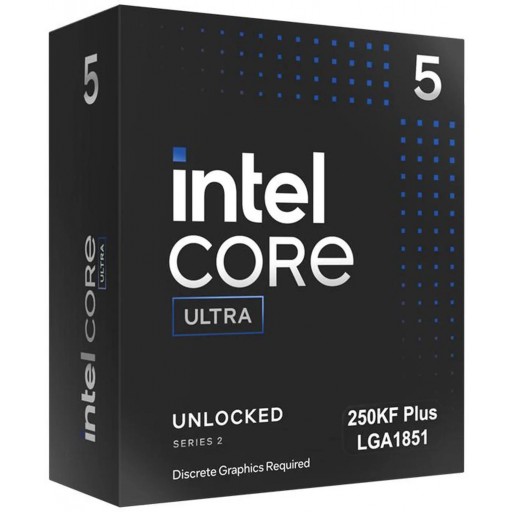

Intel BX80768250KF Core Ultra 5 250KF Plus 18-Core 5.30GHz Arrow Lake-S Socket LGA1851 Desktop CPU – Cooler Not Included
R4830
Take your productivity, gaming, and content creation experiences to a new level with the Intel Core Ultra 5 250KF Plus 18-Core LGA 1851 Processor. Built for professionals and enthusiasts, this desktop processor fits LGA 1851 socket motherboards and delivers improved power efficiency, stability, and performance with an updated Arrow Lake architecture, optimized Hybrid Core design, single-thread cores, and integrated NPU.
In stock
Description
FEATURES
Intel 15th Generation Arrow Lake-S Processor
Intel AI Boost AI Accelerator NPU
Up to 13 TOPs AI Performance (NPU)
6x Performance Cores
12x Efficient Cores
18 Cores, 18 Threads
30MB Intel Smart Cache
No On-Board Graphics
P-Core Max Turbo Clock: Up to 5.30GHz
E-Core Max Turbo Clock: Up to 4.40GHz
Socket LGA 1851 Compatible
Up to DDR5-7200 Dual-Channel Memory Supported
Up to 256GB (4x64GB) DDR5 Memory Supported
PCI Express Version 5.0 Supported
Intel eXtreme Memory 3.0 Overclocking Profiles
Intel Turbo Boost Max Technology 3.0
Intel Deep Learning Boost on CPU
Intel Stock Cooler Not Included
Base Power: 125W
Turbo Power: Up to 159W
Socket LGA 1851 Compatible
Supports Windows 11, Linux
TECHNICAL SPECIFICATIONS
Brand: Intel
Series: 15th Gen Arrow Lake S
Model: Core Ultra 5 250KF Plus (BX80768250KF)
CPU Specifications
Cores: 18 cores
Number of Performance-cores: 6 cores
Number of of Efficient-cores: 12 cores
Total Threads: 18 threads
Max Turbo Frequency: 5.30 GHz
Performance-core Max Turbo Frequency: 5.30 GHz
Efficient-core Max Turbo Frequency: 4.60 GHz
Performance-core Base Frequency: 4.20 GHz
Efficient-core Base Frequency: 3.3 GHz
Cache: 30MB Intel Smart Cache
Total L2 Cache: 30MB
Processor Base Power: 125W
Maximum Turbo Power: 159W
Intel Deep Learning Boost (Intel DL Boost) on CPU Yes, supported
AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B
Memory Specifications
Max Memory Size (dependent on memory type): 256GB
Memory Types: DDR5
Maximum Memory Speed: 7200 MT/s
Max # of Memory Channels: 2, dual-channel
ECC Memory Supported: Yes
GPU Specifications
GPU Name: N/A, No integrated Graphics
NPU Specifications
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8): 13 TOPs
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes, supported
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1×16 2×4, 2×8 2×4, 1×8 4×4
Max # of PCI Express Lanes: 24
Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2020A
Max Operating Temperature: 105 °C
General
Platform Support: Windows 11 64-bit
Linux
Additional information
| Weight | 0,2 kg |
|---|---|
| Dimensions | 12,5 × 12 × 4,8 cm |
| Condition | |
| CPU Manufacturer | Intel |
| CPU Socket | LGA 1851 |
| CPU Series | Intel Core Ultra 5 |
Frequently Asked Questions
Q: What processor line does this model belong to?
A: This is an Intel Intel Core Ultra 5 processor, designed for gaming, multitasking, and heavy workloads.
Q: What socket motherboard do I need for this CPU?
A: This processor requires a motherboard with a matching LGA 1851 socket layout.
