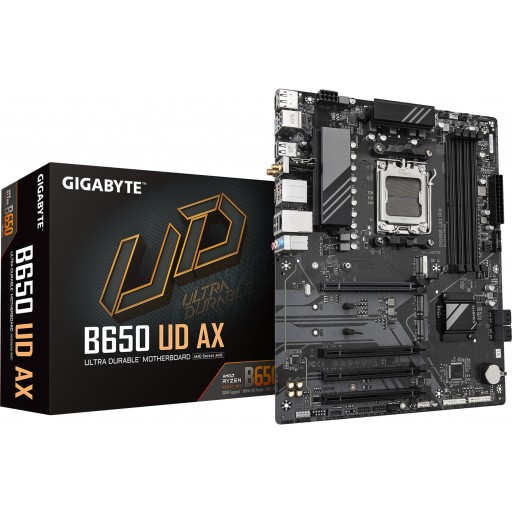

Gigabyte B650 UD AX WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

Description

FEATURES
ATX Form Factor
AMD B650 Chipset
Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
4x DDR5 DIMM Slots, Supports Up to 256GB
Supports Up to DDR5-7600 (OC)
Supports AMD EXPO & Intel XMP 3.0 Modules
1x PCIe 4.0 x16 Slot (x16 Physical)
3x PCIe 3.0 x1 Slots (x16 Physical)
1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot
1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot
4x SATA 3.0 Ports
1x USB 3.2 Gen1 Type-C Port
2x USB 3.2 Gen2 Type-A Ports
6x USB 2.0 Type-A Ports
1x DisplayPort 1.4 Port
1x HDMI 2.1 Port
3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
2x SMA Connectors
1x PS/2 Combo Port (Mouse/Keyboard)
Realtek RTL8111H Gigabit Ethernet
Realtek RTL8851 WiFi 6 (802.11ax) Adapter, Bluetooth 5.3
Realtek ALC897 High-Definition Audio Codec
PCIe x16 EZ-Latch Quick-Release Mechanism
Direct 6+2+2 Phase Digital VRM Solution
Gigabyte Q-Flash Plus
Gigabyte M.2 EZ-Latch
Gigabyte Smart Fan 6 Technology
Gigabyte RGB Fusion
Gigabyte Ultra Durable Components

TECHNICAL SPECIFICATIONS

Brand: Gigabyte
Series: Motherboards
Model: B650 UD AX
CPU: AMD Socket AM5
Support for AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
(Refer to “CPU Support List” for more information)
Chipset: AMD B650 Chipset
Memory: Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Support for DisplayPort 1.4 version
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3
Support for native HDMI 2.1 TMDS compatible ports
Audio Realtek Audio CODEC
ALC897
High Definition Audio
2/4/5.1/7.1-channel
LAN: Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module: Realtek RTL8851BE WIFI 6 module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Support for 11ax wireless standard
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Storage Interface: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB: CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
CPU USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset: USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors: 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x CPU fan/water cooling pump header
2x system fan headers
1x system fan/water cooling pump header
1x addressable RGB Gen2 LED strip header
1x RGB LED strip header
3x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C header, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header
3x USB 2.0/1.1 headers
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1x Q-Flash Plus button
1x Clear CMOS jumper
Back Panel Connectors: 1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors
1 x USB Type-C port
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS: 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software: Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System: Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
