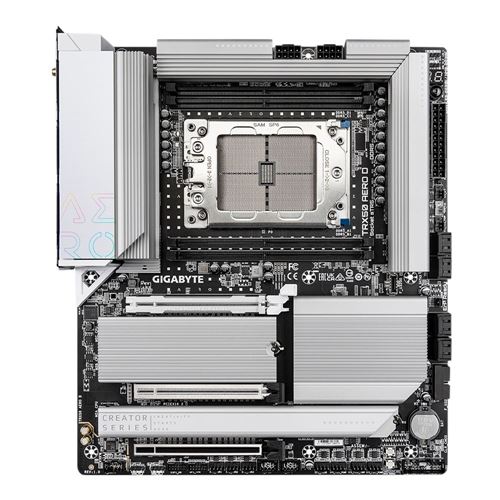

Gigabyte TRX50 AERO D AMD Ryzen Threadripper Socket sTR5 E-ATX Desktop Workstation Motherboard

Description

FEATURES
Breakthrough Performance：16+8+4 Phases Digital VRM Solution
Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
Next-gen Connectivity: Dual USB4 Type-C ports
Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：M.2 slots with quick release design
Hi-Fi Audio with DTS:X Ultra：ALC4080+ALC897 CODEC
UC BIOS：User-Centred intuitive UX with Quick Access function

TECHNICAL SPECIFICATIONS

Brand: Gigabyte
Series: AERO Series
Model: TRX50 AERO D
CPU Support: Supports AMD Ryzen Threadripper PRO 7000 & future processors
Supports AMD Ryzen Threadripper 7000 & future processors
Chipset: AMD TRX50

Memory Support
AMD Ryzen 7000 Series Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
4x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Video
DisplayPort: 1x USB 40Gbps Type-C with DisplayPort Alt Mode, Supports DP1.4, HDCP, HDR, VRR
1x DisplayPort Input, Supports DP1.4, HDCP, HDR, VRR
NOTE: Discrete graphics required for DisplayPort input signal & output from USB Type-C.

Expansion Slots
CPU Direct: 1x PCIe 5.0 x16 Physical, x16 Electrical
1x PCIe 5.0 x16 Physical, x16 Electrical
1x PCIe 4.0 x16 Physical, x16 Electrical

Storage
CPU Direct: M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2B_CPU)
M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
AMD TRX50 Chipset: 8x SATA 6Gb/s Ports
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

Networking
LAN: Marvell AQtion AQC113C 10 Gigabit Ethernet RJ-45 Adapter (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Realtek RTL8125BG 2.5Gb Ethernet RJ-45 Adapter (2.5 Gbps/1 Gbps/100 Mbps)
WiFi: Qualcomm QCNCM865 WiFi 7 2×2 MIMO Tri-Band Adapter
Bluetooth: Bluetooth 5.3

Audio
Codec: Realtek ALC4080 CODEC (rear panel audio)
Support for DTS:X Ultra, High Definition Audio, 2-channel output
Realtek ALC897 CODEC (front panel audio)

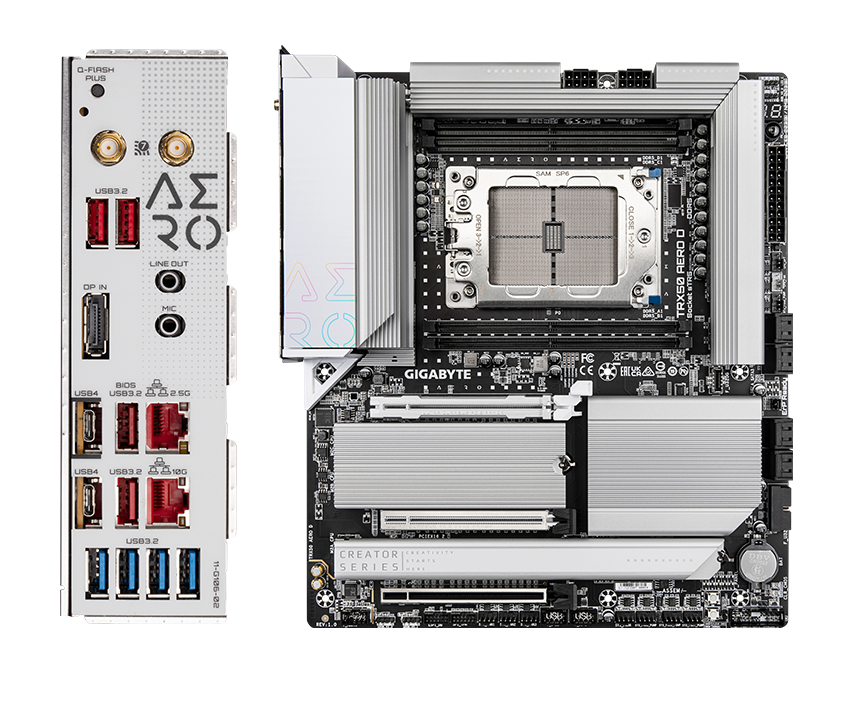

Connectivity
Ports: 1x USB 40Gbps Type-C Port with DisplayPort Alt Mode
1x USB 40Gbps Type-C Port
4x USB 10Gbps Type-A Ports
4x USB 5Gbps Type-A Ports
1x DisplayPort 1.4 Port (Ingest)
2x 3.5mm Audio Jacks (Line Out, Microphone)
2x SMA Connectors
1x Marvell 10 Gigabit Ethernet RJ-45 LAN Port
1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons: 1x Q-Flash Plus Button

General
Internal Connectors: 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
4x system fan headers
4x system fan/water cooling pump headers
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
4x M.2 Socket 3 connectors
8x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C header, with USB 3.2 Gen 2×2 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x noise detection header
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1x power button
1x Clear CMOS button
1x reset button
1x reset jumper
2x temperature sensor headers
1x Clear CMOS jumper
I/O Controller iTE I/O Controller Chip
LED Displays: 7-Segment Debug POST Code LED Display
BIOS: 256Mb UEFI AMI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: E-ATX Form Factor, 305 x 264mm (H x W)
Operating System Support: Windows 11 64-bit
